SKU:
ALP XT66.3EH12/AL
€ 9.232,84
1-2 weeks delivery time
-
+
The Antal XT66.3EHAL is a 12v self-tailing aluminum electric winch featuring three-speed control for efficient sail handling. It offers power levels of 10.7, 20.8, and 65.3, with manual recovery distances ranging from 151 mm to 24 mm and line speeds up to 23 m/min. Designed for tough marine environments, it has a motor power of 1500 watts and a working load capacity of 2600 kg, with dimensions suited for heavy-duty use and a weight of 45.5 kg.
- Description
- Ask a Question
-

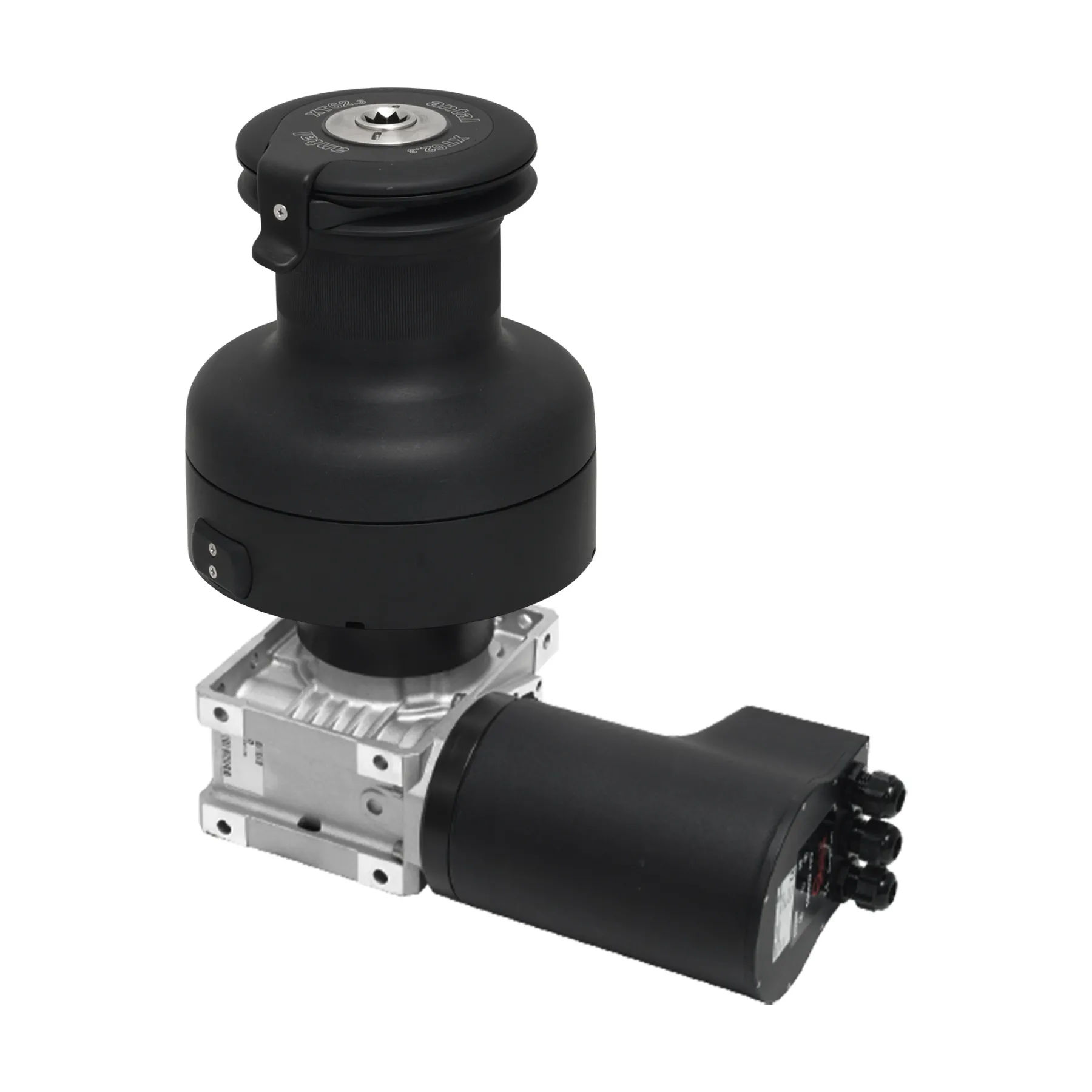

Antal XT66.3EHAL - Self-Tailing Aluminum Electric Winch (3-Speed) 12v
This electric winch combines power and precision with three-speed control for efficient sail handling. Designed for tough marine environments, it offers reliable motorized and manual recovery capabilities.
- Power levels: 10.7 / 20.8 / 65.3
- Manual recovery distances: 151 mm (speed 1), 77 mm (speed 2), 24 mm (speed 3)
- Line speeds: 23 m/min (speed 1), 12 m/min (speed 2), 3.6 m/min (speed 3)
- Gear ratios: 3.1 : 1 / 6 : 1 / 18.8 : 1

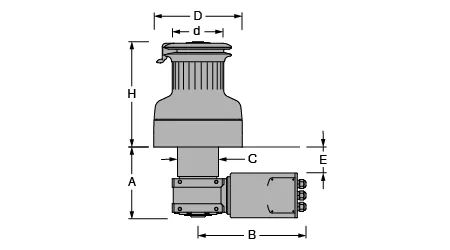

- Dimensions:
- Height (H): 293 mm
- Base diameter (Ø base D): 248 mm
- Drum diameter (Ø drum d): 144 mm
- A: 199 mm
- B: 311 mm
- C: 115 mm
- E: 74 mm
- Weight: 45.5 kg
- Line diameter range: min 10 mm, max 18 mm
- Motor power: 1500 watt
- Working load (motor): 2600 kg
- Voltage options: 12v and 24v available
- Fixing screws: 6 screws, Ø10 mm each
- Article number: XT66.3EH12/AL
-
