SKU:
ALP XT52EH12/AL
€ 4.929,81
1-2 weeks delivery time
-
+
The XT52EHAL is a heavy-duty electric winch from Antal supporting higher loads and power output. It operates at two speeds, is compatible with 12V or 24V systems, and is ideal for demanding sailing applications.
- Description
- Ask a Question
-

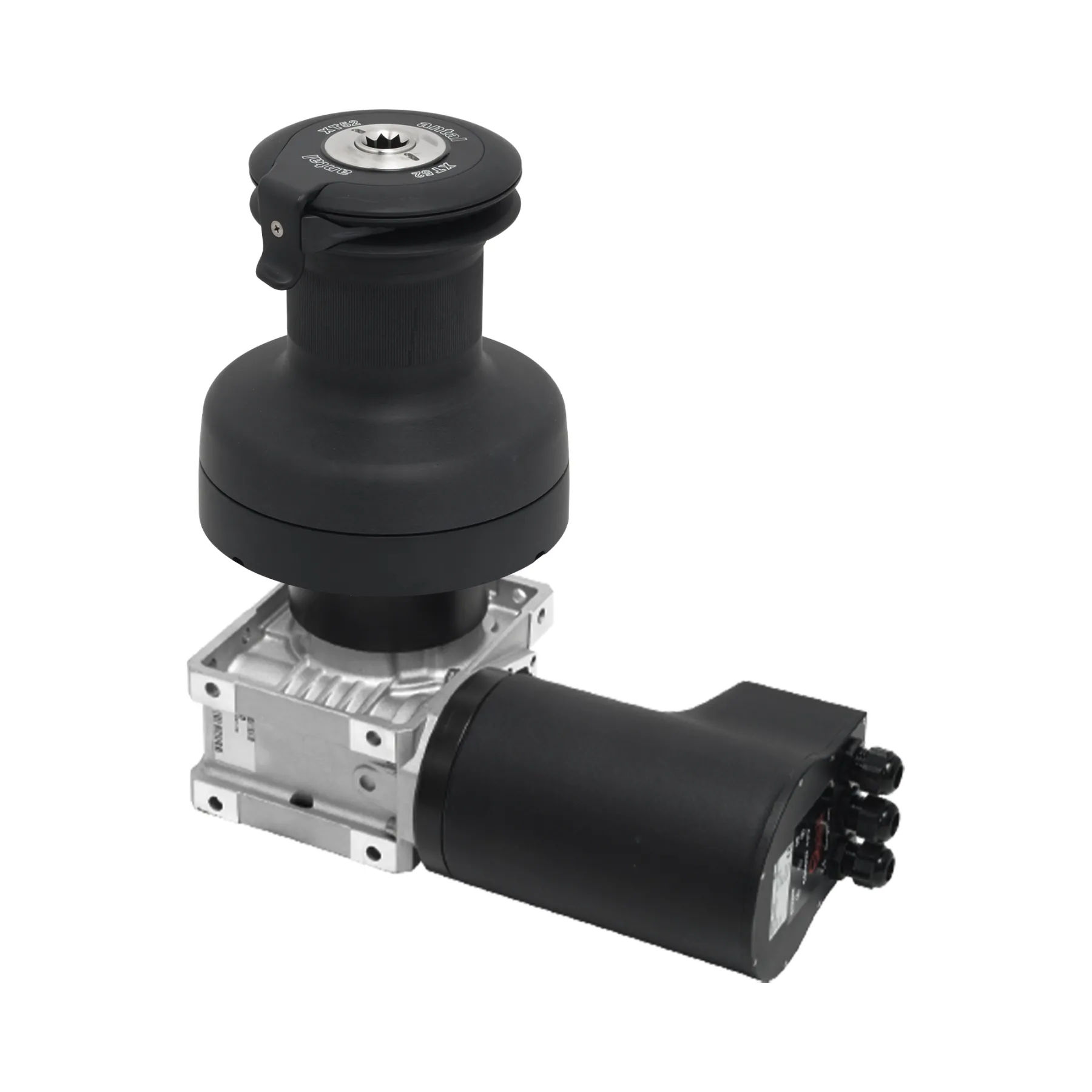

Antal XT52EHAL - Self-Tailing Aluminum Electric Winch (2-Speed) 12V
The XT52EHAL model is a heavy-duty electric winch that supports higher loads and power output. It operates at two speeds and is designed for 12V or 24V power systems, making it suitable for demanding sailing equipment needs.
- Power 1: 15.9
- Power 2: 52.8
- Recovery (manual use) 1: 100 mm
- Recovery (manual use) 2: 30 mm

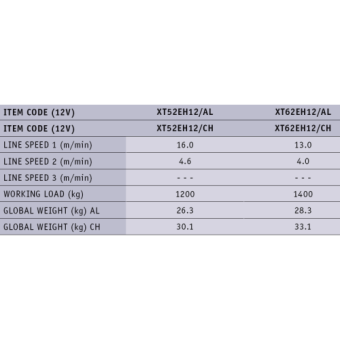

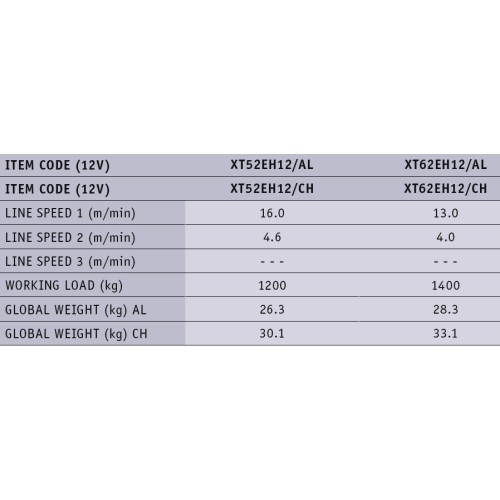

- Line speed 1: 16 m/min
- Line speed 2: 4.6 m/min
- Gear ratio 1: 3.3 : 1
- Gear ratio 2: 11.1 : 1

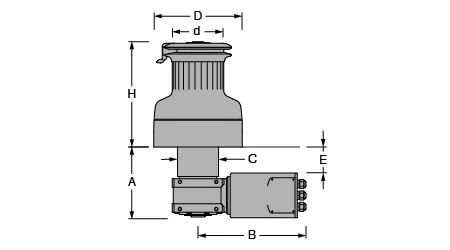

- Height (H): 217 mm
- Ø base (D): 204 mm
- Ø drum (d): 105 mm
- Weight: 30.1 kg
- A: 205 mm
- B: 311 mm
- C: 115 mm
- E: 80 mm
- Ø min line: 8 mm
- Ø max line: 14 mm
- Motor: 1000 watt
- Working load (motor): 1200 kg
- Volt 12: Available
- Volt 24: Available
- Fixing screws: 6 x Ø8 mm
- Article number: XT52EH12/AL
- EAN number: 8719182730965
-
