SKU:
ALP XT48EH12/CH
€ 4.621,30
1-2 weeks delivery time
-
+
The Antal XT48EHCH is a two-speed self-tailing bronze chromed electric winch operating at 12 volts with 700 watts, delivering strong performance for electric sail handling.
- Description
- Ask a Question
-

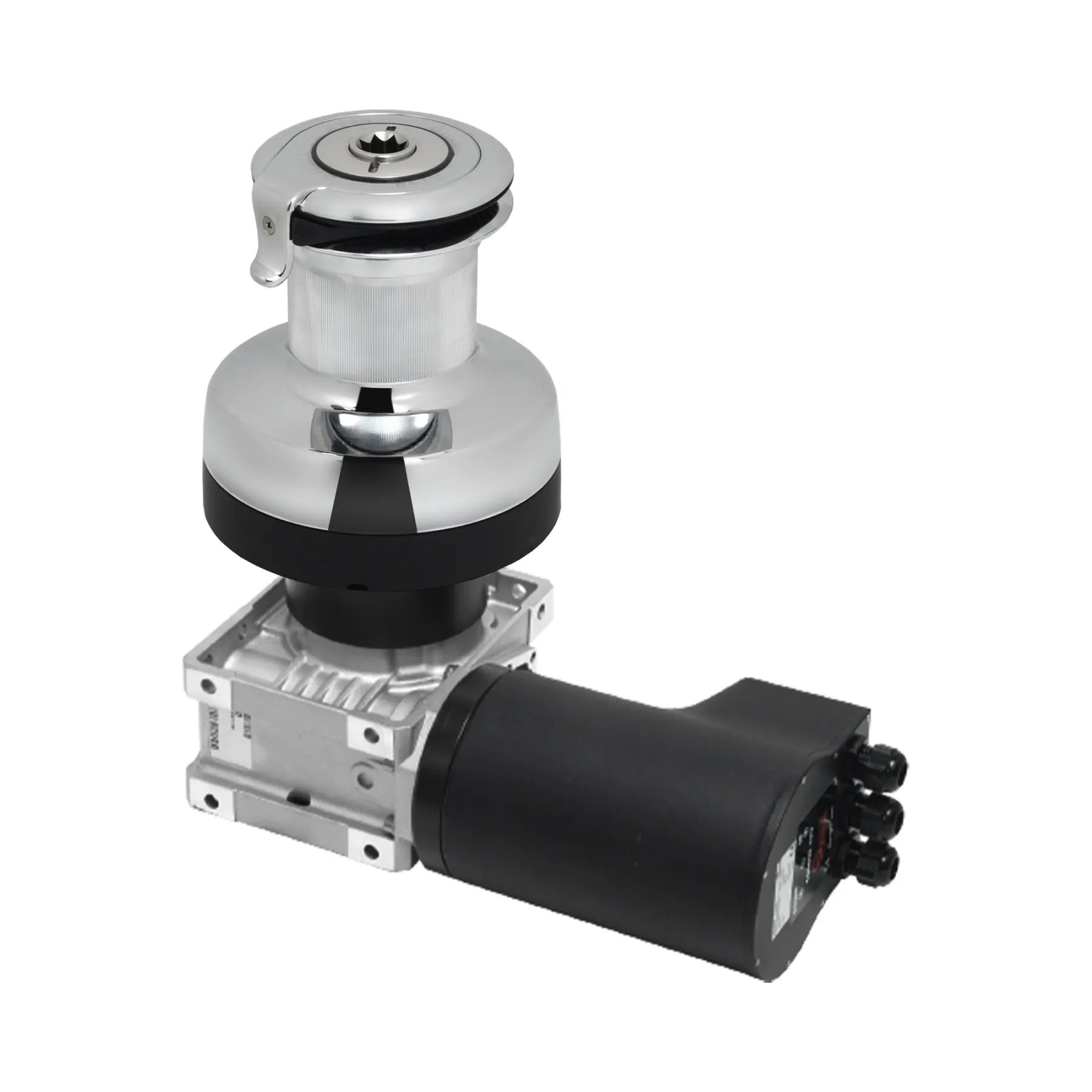

Antal XT48EHCH - Self-Tailing Bronze Chromed Electric Winch (2-Speed) 12v/700w
The Antal XT48EHCH is designed for powerful and efficient 12v electric winching, providing strong recovery and motor load capacity. This model features high durability and precision engineering for demanding marine tasks.
- Power 1: 19.0
- Power 2: 47.4
- Recovery (manual use) 1: 84 mm
- Recovery (manual use) 2: 34 mm

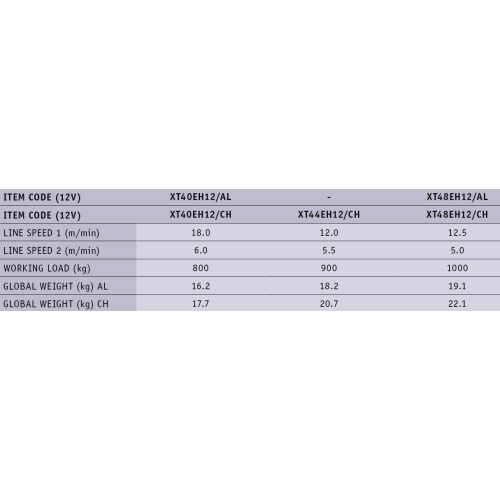

- Line speed 1: 12.5 m/min
- Line speed 2: 5 m/min
- Gear ratio 1: 3.5 : 1
- Gear ratio 2: 8.8 : 1

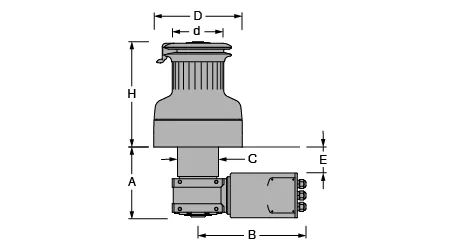

- Height (H): 197 mm
- Ø base (D): 182 mm
- Ø drum (d): 93 mm
- Weight: 22.1 kg
- A: 189 mm
- B: 263 mm
- C: 115 mm
- E: 64 mm
- Ø min line: 8 mm
- Ø max line: 14 mm
- Motor: 700 watt
- Working load (motor): 1000 kg
- Volt 12: Available
- Volt 24: Available
- Fixing screws: 6 x Ø8 mm
- Article number: XT48EH12/CH
-
