SKU:
ALP XT48EH12/AL
€ 4.372,65
1-2 weeks delivery time
-
+
The Antal XT48EHAL is a mid-size electric winch designed for 12V or 24V systems, offering strong power output, precise control, and the ability to handle larger line diameters with a 700-watt motor and horizontal drive.
- Description
- Ask a Question
-

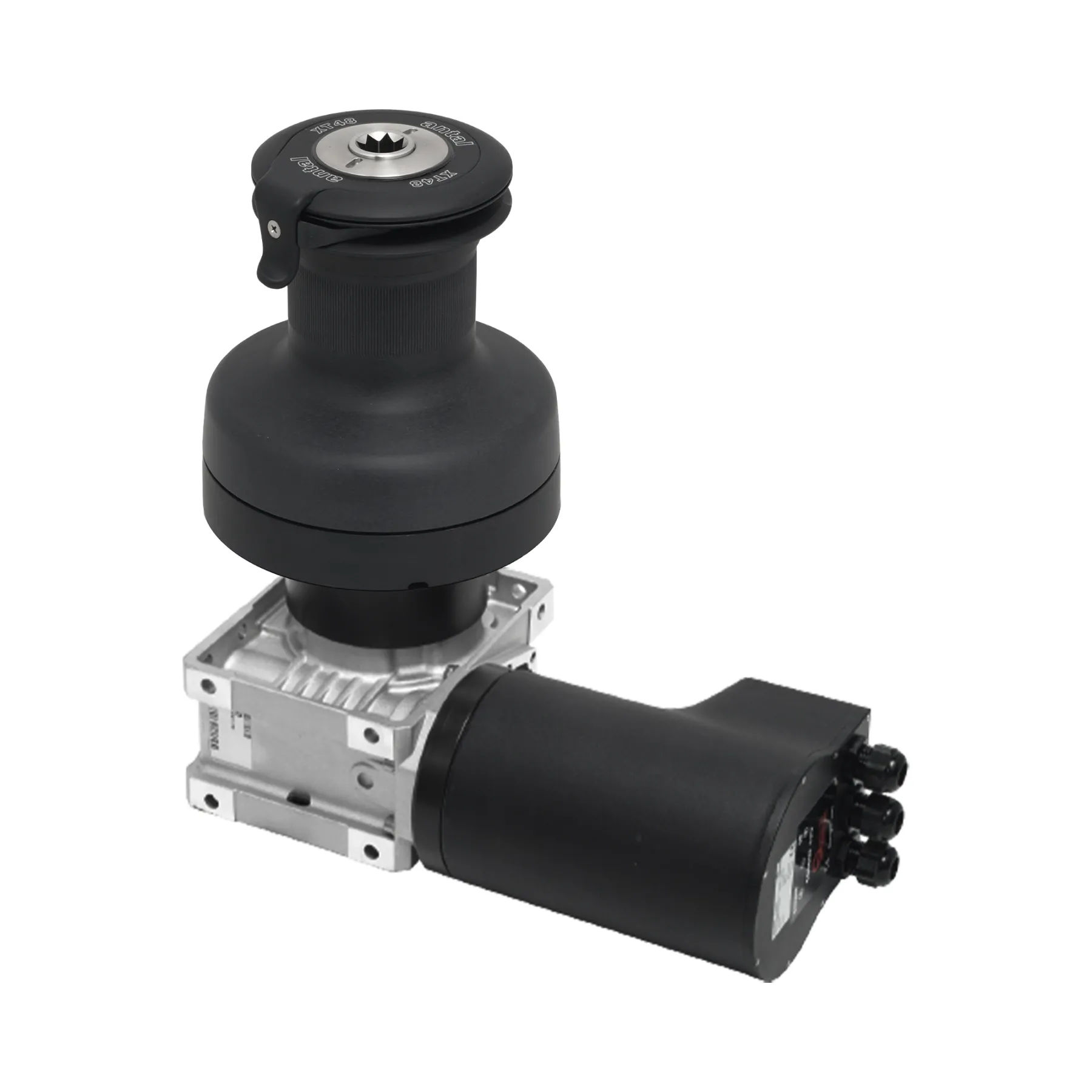

Antal XT48EHAL - Self-Tailing Aluminum Electric Winch (2-Speed) 12V/700W
This mid-size electric winch combines strong power output with precise control, featuring two-speed operation and horizontal drive. It is designed for 12V or 24V systems, supporting a higher working load and accommodating larger line diameters.
- Power 1: 19.0
- Power 2: 47.4
- Recovery (manual use) 1: 84 mm
- Recovery (manual use) 2: 34 mm
- Line speed 1: 12.5 m/min
- Line speed 2: 5 m/min
- Gear ratio 1: 3.5 : 1
- Gear ratio 2: 8.8 : 1

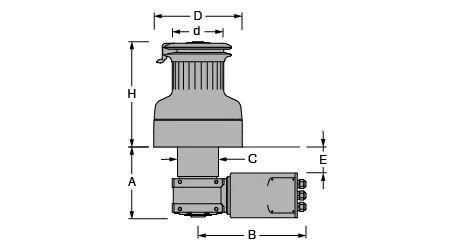

- Height (H): 197 mm
- Ø base (D): 182 mm
- Ø drum (d): 93 mm
- Weight: 22.1 kg
- A: 189 mm
- B: 263 mm
- C: 115 mm
- E: 64 mm
- Ø min line: 8 mm
- Ø max line: 14 mm
- Motor: 700 watt
- Working load (motor): 1000 kg
- Volt 12: Available
- Volt 24: Available
- Fixing screws: 6 x Ø8 mm
- Article number: XT48EH12/AL
- Model: Horizontal drive
-
