SKU:
ALP 54S0613
€ 173,84
1-2 weeks delivery time
-
+
The Antal S0613 U-bolt block features stainless steel 316 construction, a 65 mm resin sheave with Delrin and composite fibre bearings, and secure mounting with fixing screws and a U bolt, rated for an 800 kg safe working load.
- Description
- Ask a Question
-

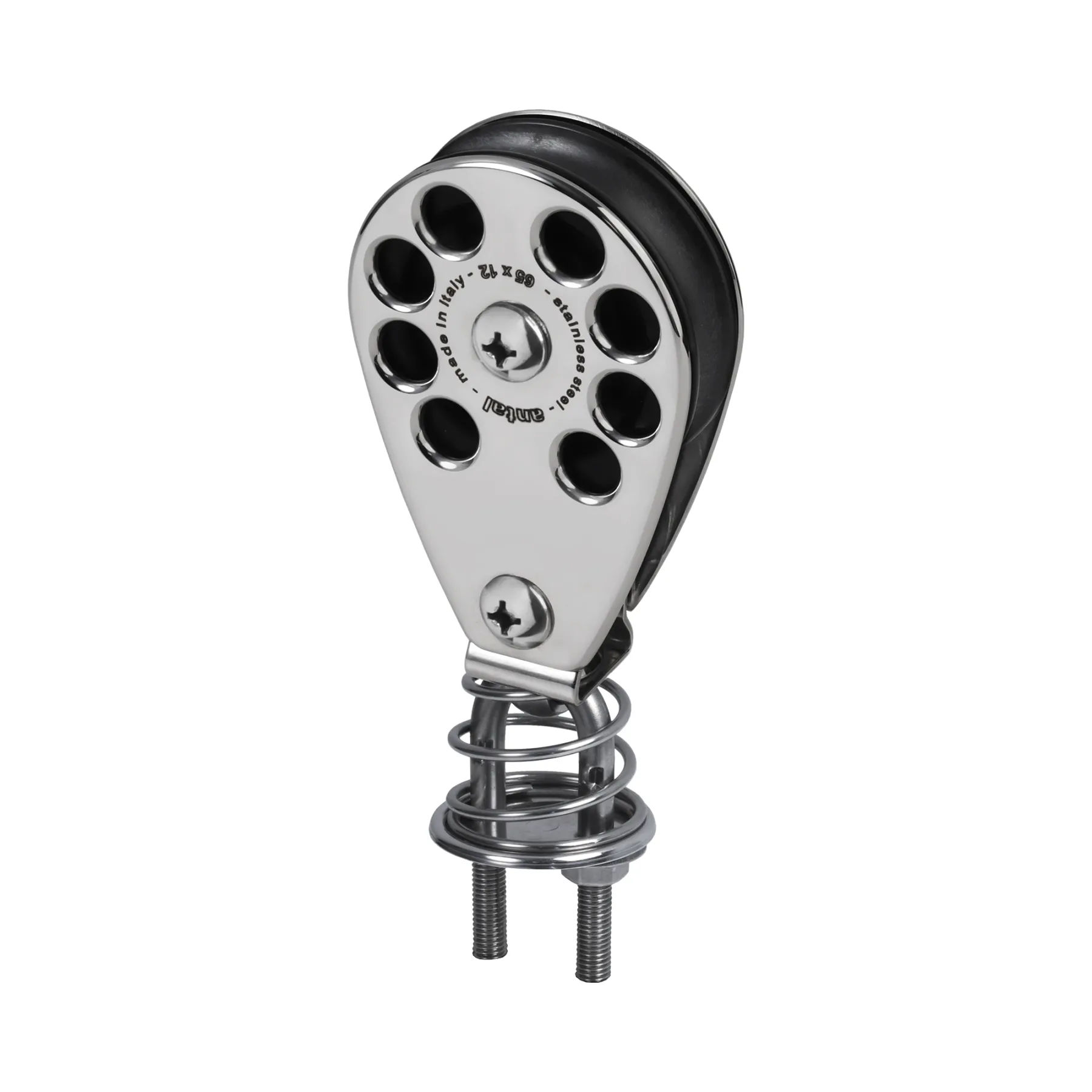

Antal S0613 - Stainless Steel 316 Block Series 65, Ball Bearing, U-Bolt Block
This U-bolt block is constructed from stainless steel 316 and is equipped with resin sheaves, Delrin side bearings, and composite fibre radial bearings. Designed for reliable load handling with secure mounting.
- Ø sheave (D): 65 mm
- Side bearing: Delrin balls
- Radial bearing: Composite Fibre
- Weight: 0.36 kg
- Ø max line: 12 mm
- SWL: 800 kg
- Material: S.Steel
- Sheave material: Resin
- Fixing screws: 2 x Ø6 mm
- U bolt Mod.: 7106
- Ø U bolt base: 44 mm
- Article number: 54S0613
-
