SKU:
ALP 54S0612
€ 201,54
1-2 weeks delivery time
-
+
The Antal S0612 is a compact double deck block designed for marine use. It is constructed from stainless steel 316 and features Delrin ball bearings along with composite fibre radial bearings. With a sheave size of 65mm and a SWL of 800kg, this block is ideal for demanding applications, offering low friction and robust performance.
- Description
- Ask a Question
-

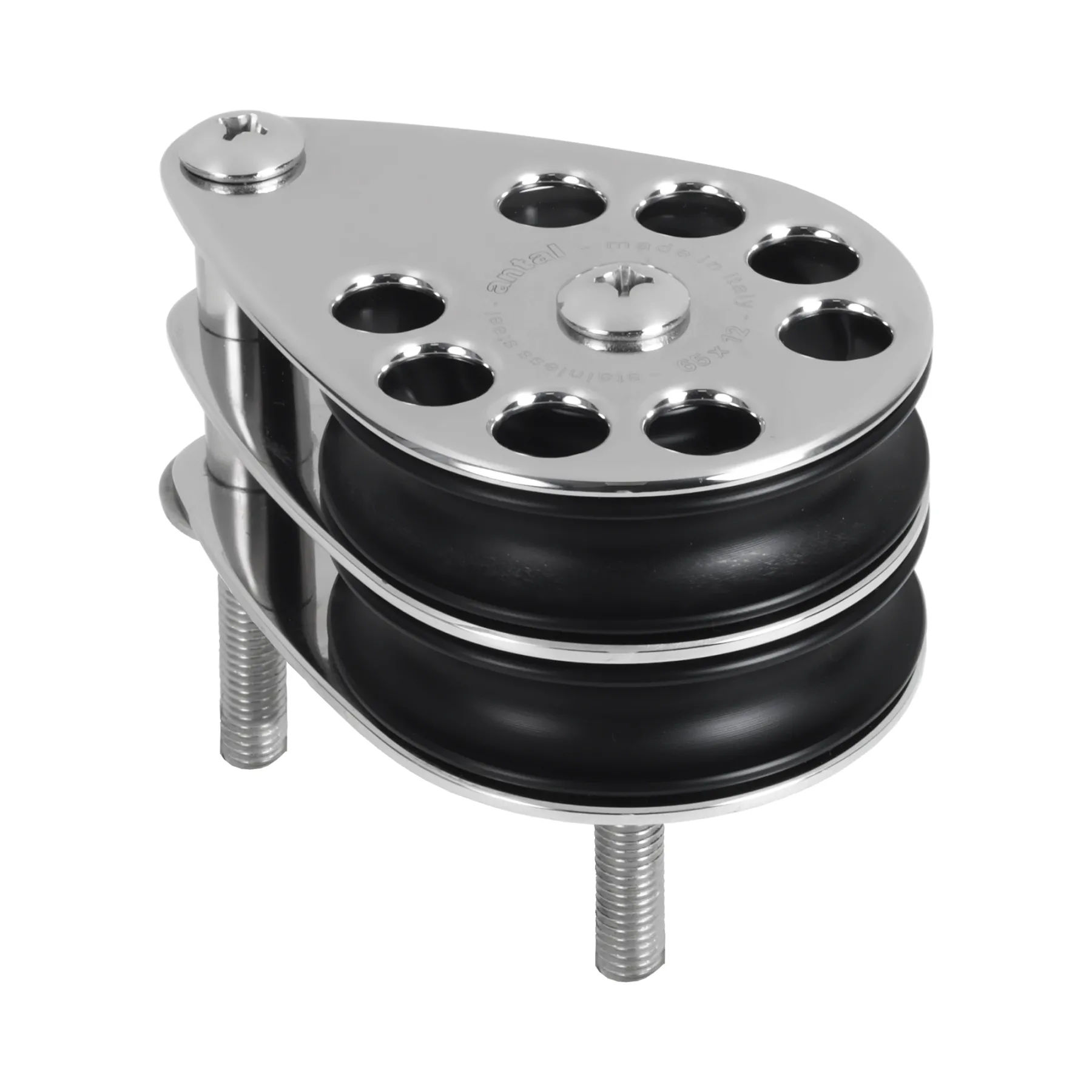

Antal S0612 - Stainless Steel 316 Block Series 65, Ball Bearing, Double Deck Block
Compact double deck block engineered with precision. This stainless steel 316 model offers low friction and strength through Delrin and composite fibre bearings, and is ideal for demanding marine applications.

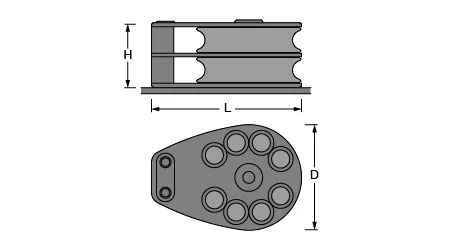

- Length (L): 96 mm
- Width (W): 65 mm
- Height (H): 49 mm
- Ø sheave (D): 65 mm
- Side bearing: Delrin balls
- Radial bearing: Composite Fibre
- Weight: 0,46 kg
- Ø max line: 12 mm
- SWL: 800 kg
- Material: S.steel
- Sheave material: Resin
- Fixing screws: 2 x Ø8 mm
- Article number: 54S0612
-
