SKU:
ALP 54S0611
€ 124,98
1-2 weeks delivery time
-
+
The Antal S0611 is a compact deck-mounted single block with stainless steel 316 construction, a 65 mm resin sheave, Delrin and composite fibre bearings, and fixing screws for secure installation, rated for 800 kg SWL.
- Description
- Ask a Question
-

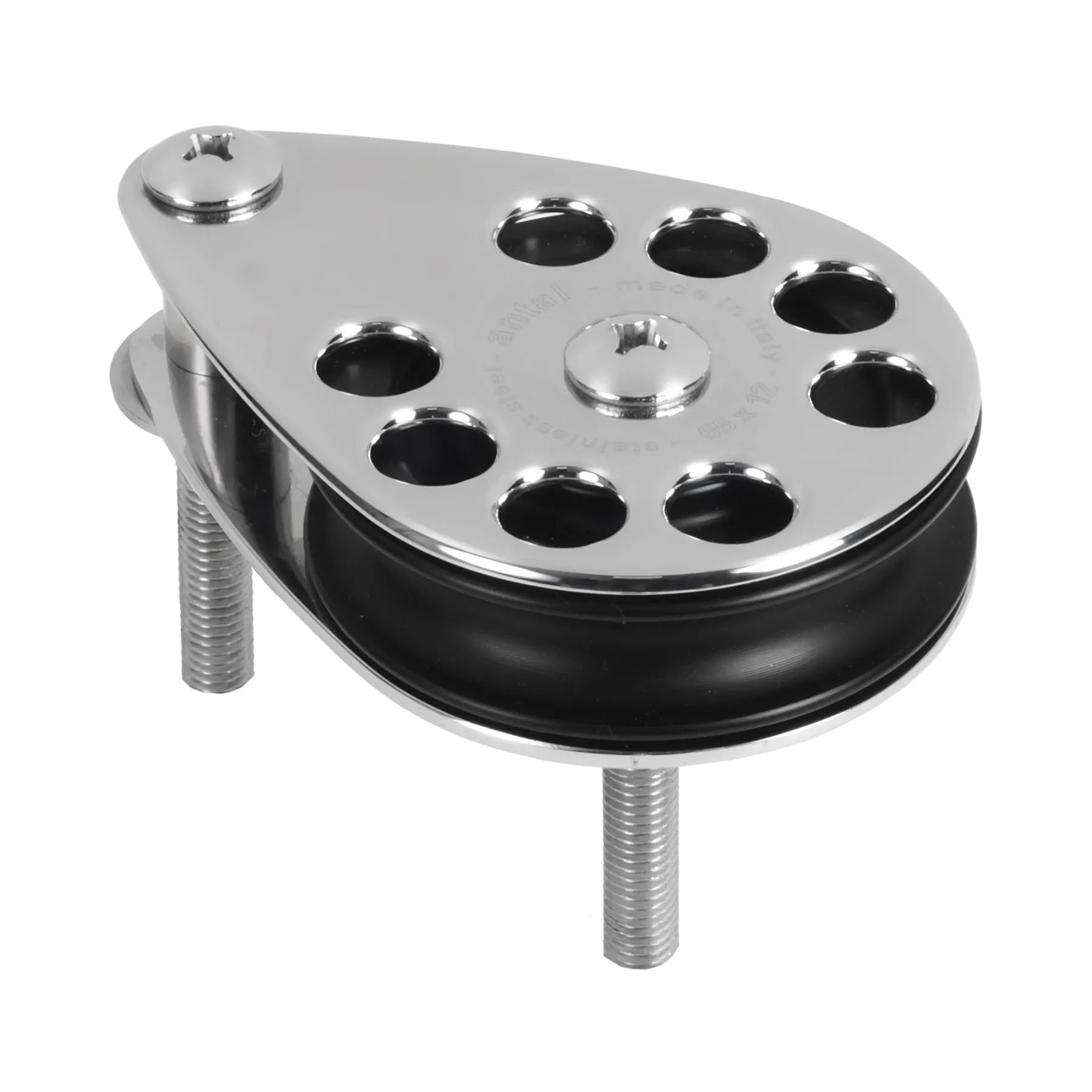

Antal S0611 - Stainless Steel 316 Block Series 65, Ball Bearing, Single Deck Block
Designed for deck mounting, this Antal single block offers compact dimensions with a high load rating, ideal for tight installations while maintaining Series 65 ball bearing efficiency.

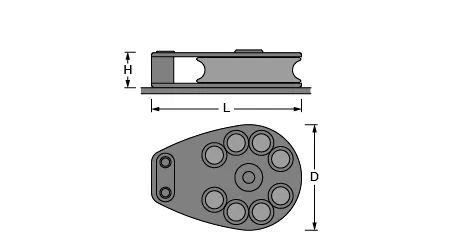

- Length (L): 96 mm
- Width (W): 65 mm
- Height (H): 29 mm
- Ø sheave (D): 65 mm
- Side bearing: Delrin balls
- Radial bearing: Composite Fibre
- Weight: 0.30 kg
- Ø max line: 12 mm
- SWL: 800 kg
- Material: S.Steel
- Sheave material: Resin
- Fixing screws: 2 x Ø8 mm
- Article number: 54S0611
-
