SKU:
ALP 54H150
€ 200,50
1-2 weeks delivery time
-
+
The Antal H150 - Aluminum High Load Block is built for lines between 10-12 mm, offering smooth operation with Delrin ball bearings and composite fibre radial bearings. Its compact design provides a safe working load of 2400 kg for various applications.
- Description
- Ask a Question
-

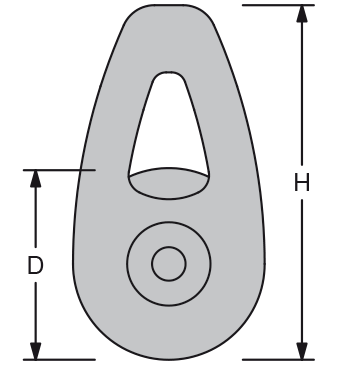

Antal H150 - Aluminum High Load Block, Line Ø10-12mm, D=55mm, H=91mm, Swl 2400kg
This high load block is constructed from aluminum with a 55 mm diameter sheave. It is designed to accommodate lines with diameters between 10 and 12 mm. The block uses Delrin ball side bearings and composite fiber radial bearings to ensure smooth operation. It weighs only 0.18 kg and has a safe working load of 2400 kg.
- Sheave diameter (D): 55 mm
- Side bearing: Delrin balls
- Radial bearing: Composite fibre
- Weight: 0.18 kg
- Maximum line diameter: 12 mm
- Safe Working Load (SWL): 2400 kg
- Material: Aluminum
- Sheave material: Aluminum
- Article number: 54H150
- EAN number: 8719182111368
-
