SKU:
ALP 54D560
€ 330,18
1-2 weeks delivery time
-
+
This six-sheave organizer is made of aluminum and resin sheaves, designed for lines up to 16mm in diameter. With a 341mm length and a strong 800kg SWL, it is perfect for demanding rigging applications requiring durability and performance.
- Description
- Ask a Question
-

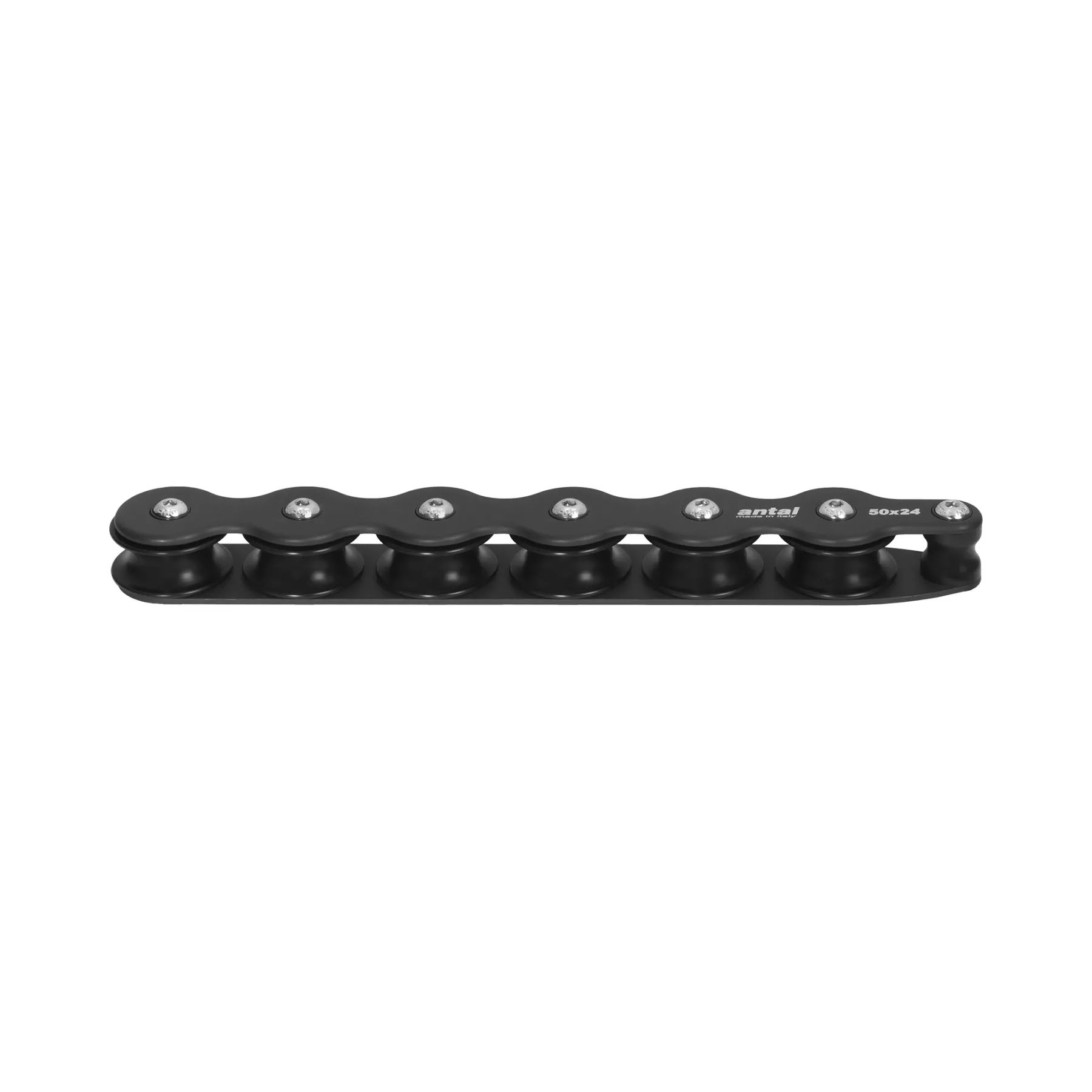

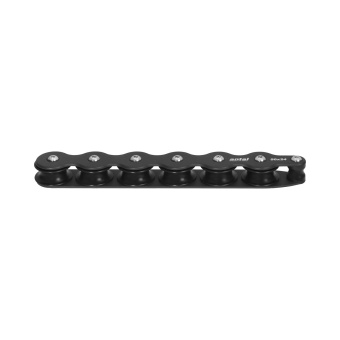

Antal D560 - Aluminum Organizer, 6-Sheave, D=50mm, P=52mm, Line Ø16mm, L=341mm, SWL 800kg
This 6-sheave organizer is constructed with aluminum and resin sheaves, supporting larger lines up to 16 mm diameter. It offers a strong safe working load of 800 kg and is suitable for demanding applications.
- Length (L): 341 mm
- Height (H): 35 mm
- Number of sheaves: 6
- Sheave diameter (D): 50 mm
- Side bearing: Delrin balls
- Weight: 0.74 kg
- Maximum line diameter: 16 mm
- Pitch (B): 52 mm
- Safe working load (SWL) per single sheave: 1200 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 7 x Ø8 mm
- Article number: 54D560
- EAN number: 8719182110521
-
Ask a Question
