SKU:
ALP 54D530
€ 167,96
1-2 weeks delivery time
-
+
This robust aluminum organizer includes three 50mm resin sheaves with Delrin ball side bearings, fit for lines up to 16mm diameter. With a length of 185mm and an 800kg SWL, it is suitable for demanding applications that require high performance.
- Description
- Ask a Question
-

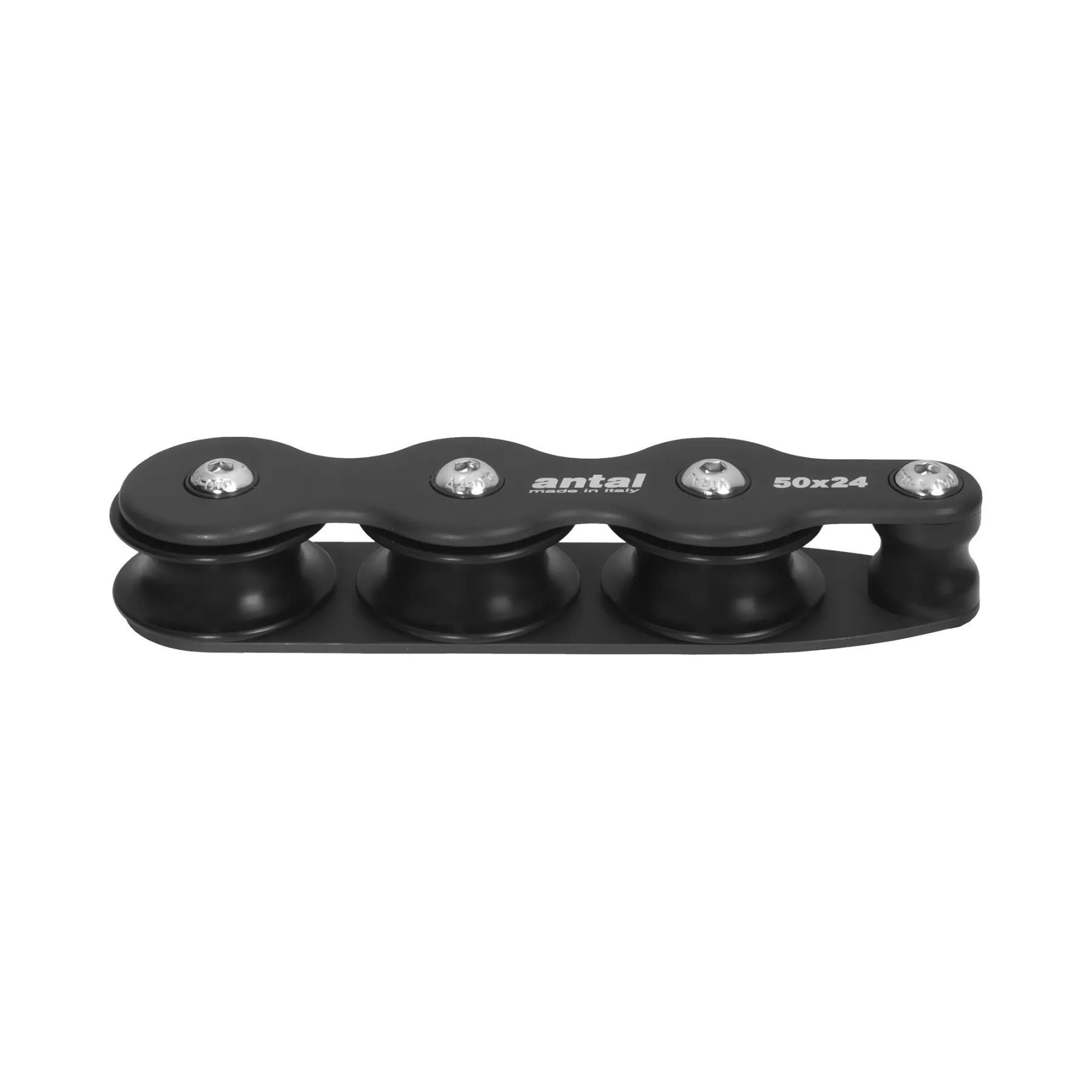

Antal D530 - Aluminum Organizer, 3-Sheave, D=50mm, P=52mm, Line Ø16mm, L=185mm, SWL 800kg
This robust aluminum organizer includes three 50mm resin sheaves with Delrin ball side bearings, fit for lines up to 16mm diameter. It has a length of 185mm and carries a SWL of 800kg, ideal for demanding applications.

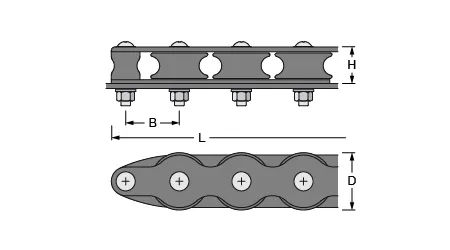

- Length (L): 185 mm
- Height (H): 35 mm
- No. of sheaves: 3
- Ø sheave (D): 50 mm
- Side bearing: Delrin balls
- Weight: 0.38 kg
- Maximum line diameter: 16 mm
- B dimension: 52 mm
- SWL single sheave: 1200 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 4 x Ø8 mm
- Article number: 54D530
- EAN number: 8719182110521
-
