SKU:
ALP 54D520
€ 121,72
1-2 weeks delivery time
-
+
This aluminum organizer features two 50mm resin sheaves mounted on Delrin ball bearings, suitable for lines up to 16mm in diameter. With a length of 133mm, it offers a Safe Working Load (SWL) of 800kg, making it ideal for general use.
- Description
- Ask a Question
-

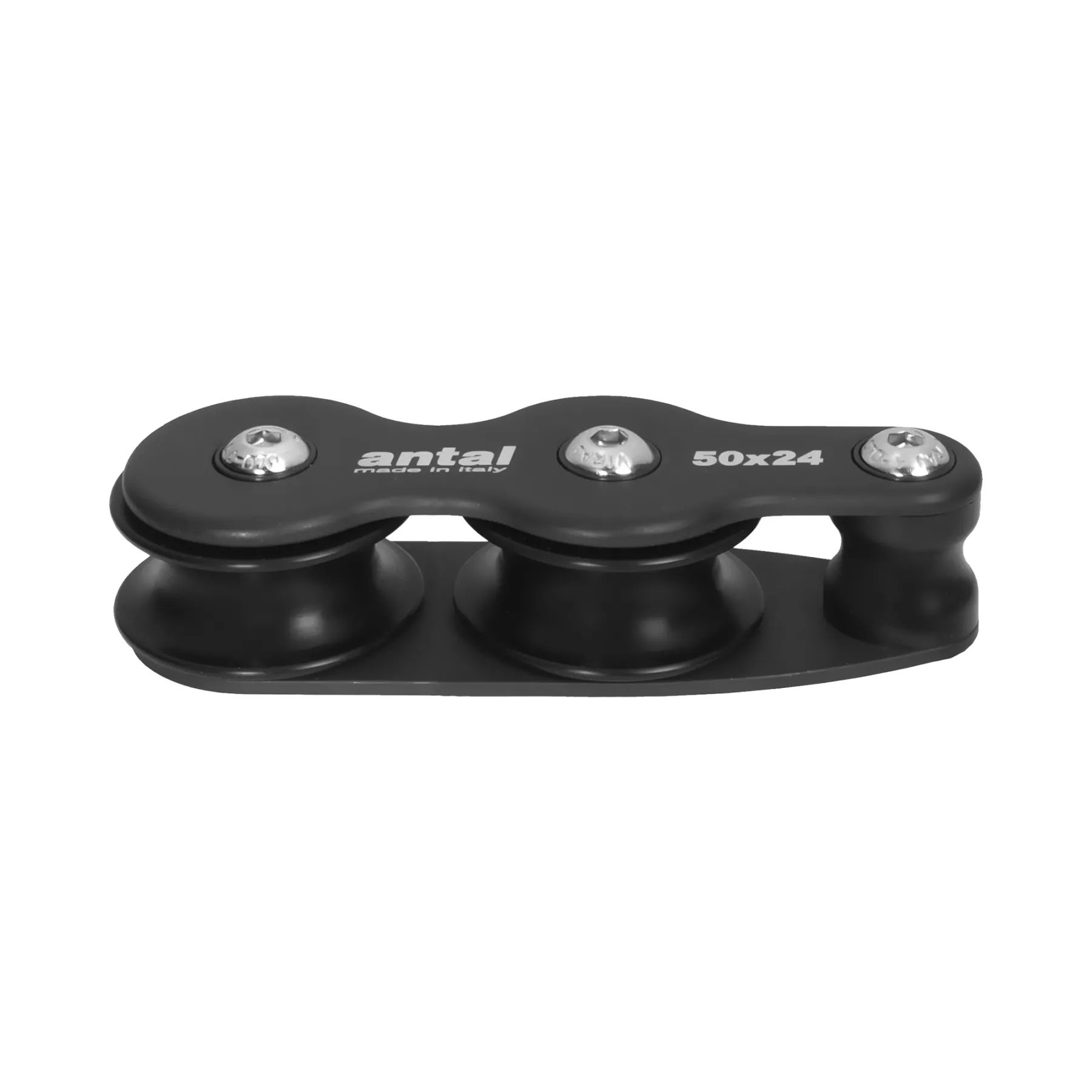

Antal D520 - Aluminum Organizer, 2-Sheave, D=50mm, P=52mm, Line Ø16mm, L=133mm, SWL 800kg
This aluminum organizer includes two 50mm resin sheaves mounted on Delrin ball bearings, suitable for lines up to 16mm diameter. The organizer is 133mm long and supports an SWL of 800kg for general use.
- Length (L): 133 mm
- Height (H): 35 mm
- No. of sheaves: 2
- Ø sheave (D): 50 mm
- Side bearing: Delrin balls
- Weight: 0.26 kg
- Maximum line diameter: 16 mm
- B dimension: 52 mm
- SWL single sheave: 1200 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 3 x Ø8 mm
- Article number: 54D520
- EAN number: 8719182110521
-
