SKU:
ALP 54D460
€ 226,90
1-2 weeks delivery time
-
+
The Antal D460 features six 40mm resin sheaves and Delrin ball bearings, suitable for lines up to 14mm. With a 287mm length and a 600kg SWL, it provides a reliable and lightweight option for handling heavier loads.
- Description
- Ask a Question
-

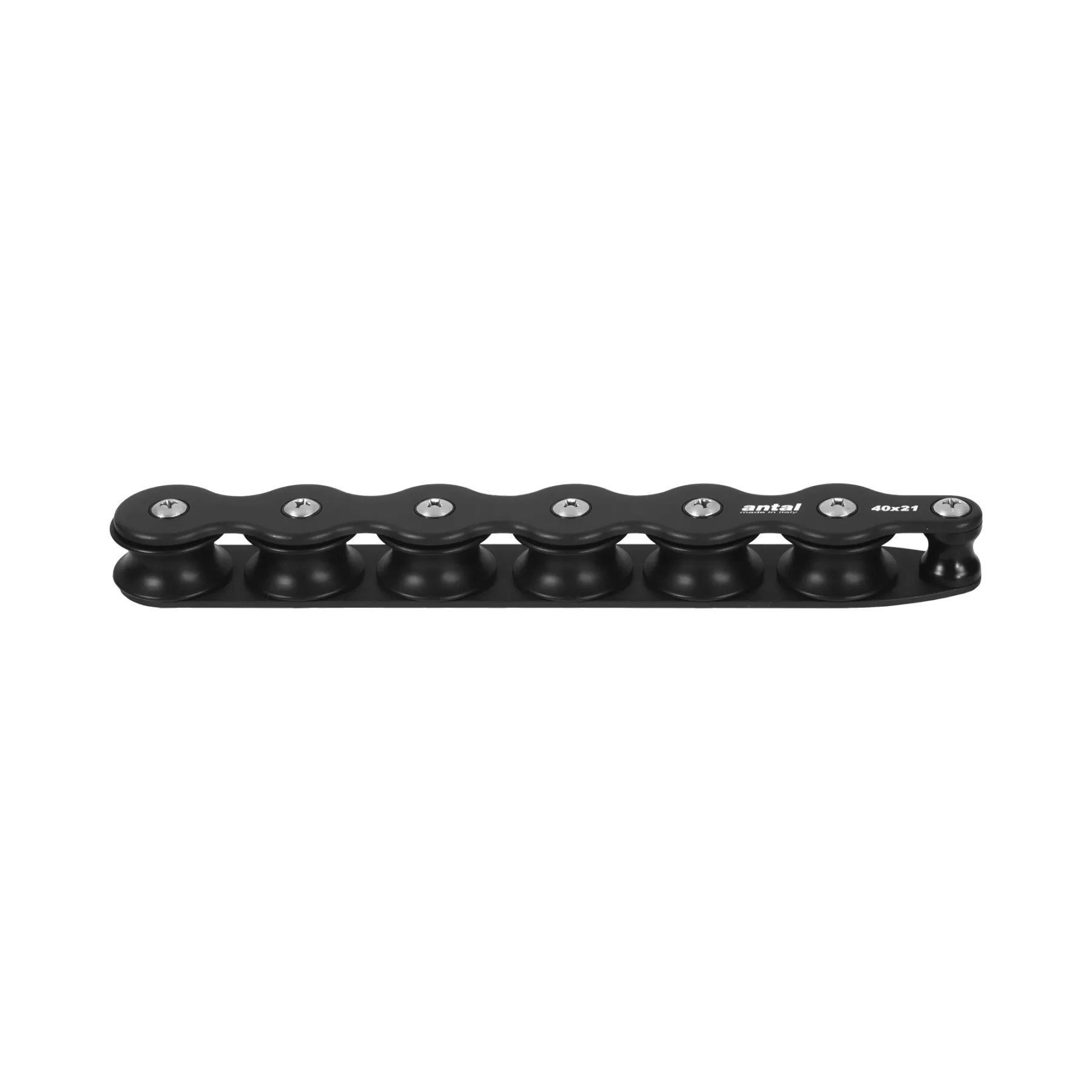

Antal D460 - Aluminum Organizer, 6-Sheave, D=40mm, P=44mm, Line Ø14mm, L=287mm, SWL 600kg
This organizer features six sheaves made of resin, designed to accommodate lines up to 14 mm in diameter. Its aluminum frame provides durability while maintaining a lightweight structure. Ideal for applications requiring a safe working load of up to 600 kg.

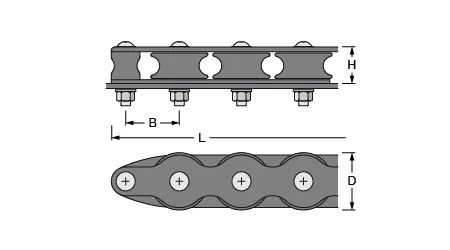

- Length (L): 287 mm
- Height (H): 31 mm
- Number of sheaves: 6
- Sheave diameter (D): 40 mm
- Side bearing: Delrin balls
- Weight: 0.48 kg
- Maximum line diameter: 14 mm
- Pitch (B): 44 mm
- Safe working load (SWL) per single sheave: 800 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 7 x Ø6 mm
- Article number: 54D460
- EAN number: 8719182110101
-
