SKU:
ALP 54D420
€ 98,40
1-2 weeks delivery time
-
+
The Antal D420 is an aluminum organizer with two 40mm resin sheaves and Delrin ball side bearings. It has a maximum line diameter of 14mm, a length of 111mm, and supports a safe working load of 600kg, providing smooth operation for rigging systems.
- Description
- Ask a Question
-

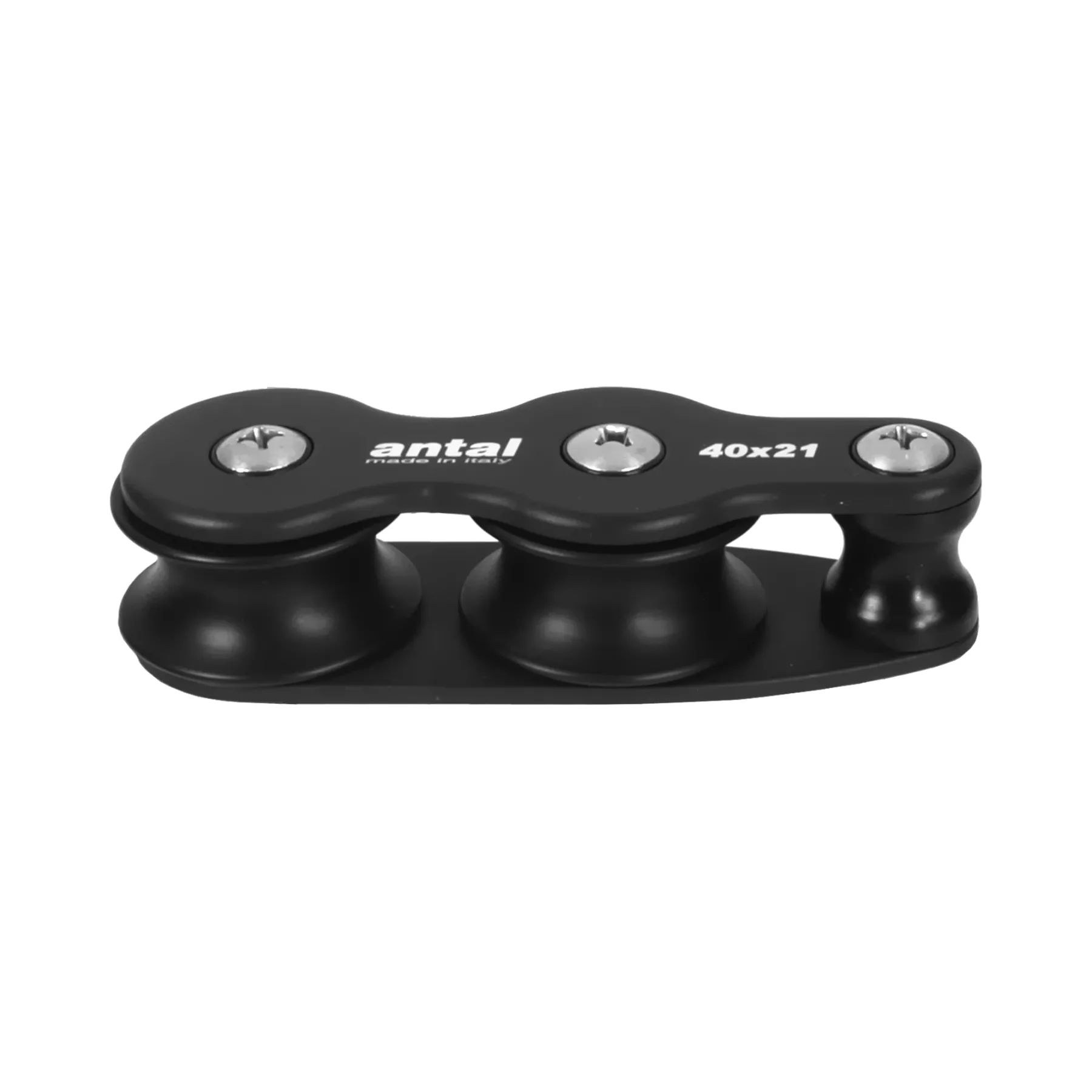

Antal D420 - Aluminum Organizer, 2-Sheave, D=40mm, P=44mm, Line Ø14mm, L=111mm, SWL 600kg
This lightweight aluminum organizer features two 40mm resin sheaves with Delrin ball side bearings, designed for a maximum line diameter of 14mm and a length of 111mm. It supports a safe working load (SWL) of 600kg.

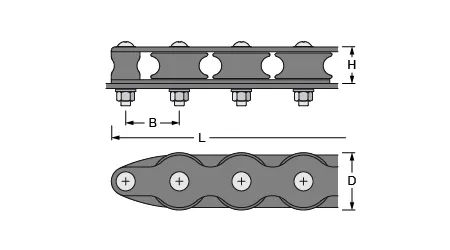

- Length (L): 111 mm
- Height (H): 31 mm
- No. of sheaves: 2
- Ø sheave (D): 40 mm
- Side bearing: Delrin balls
- Weight: 0.18 kg
- Maximum line diameter: 14 mm
- B dimension: 44 mm
- SWL single sheave: 800 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 3 x Ø6 mm
- Article number: 54D420
- EAN number: 8719182110101
-
