SKU:
ALP 623492
€ 383,06
1-2 weeks delivery time
-
+
The Antal 623.492 Genoa car is the largest in its series, combining a hard anodized aluminum slider with low friction Nylon inserts. It offers smooth operation with a safe working load of 3800 kg and is suitable for heavy-duty applications.
- Description
- Ask a Question
-

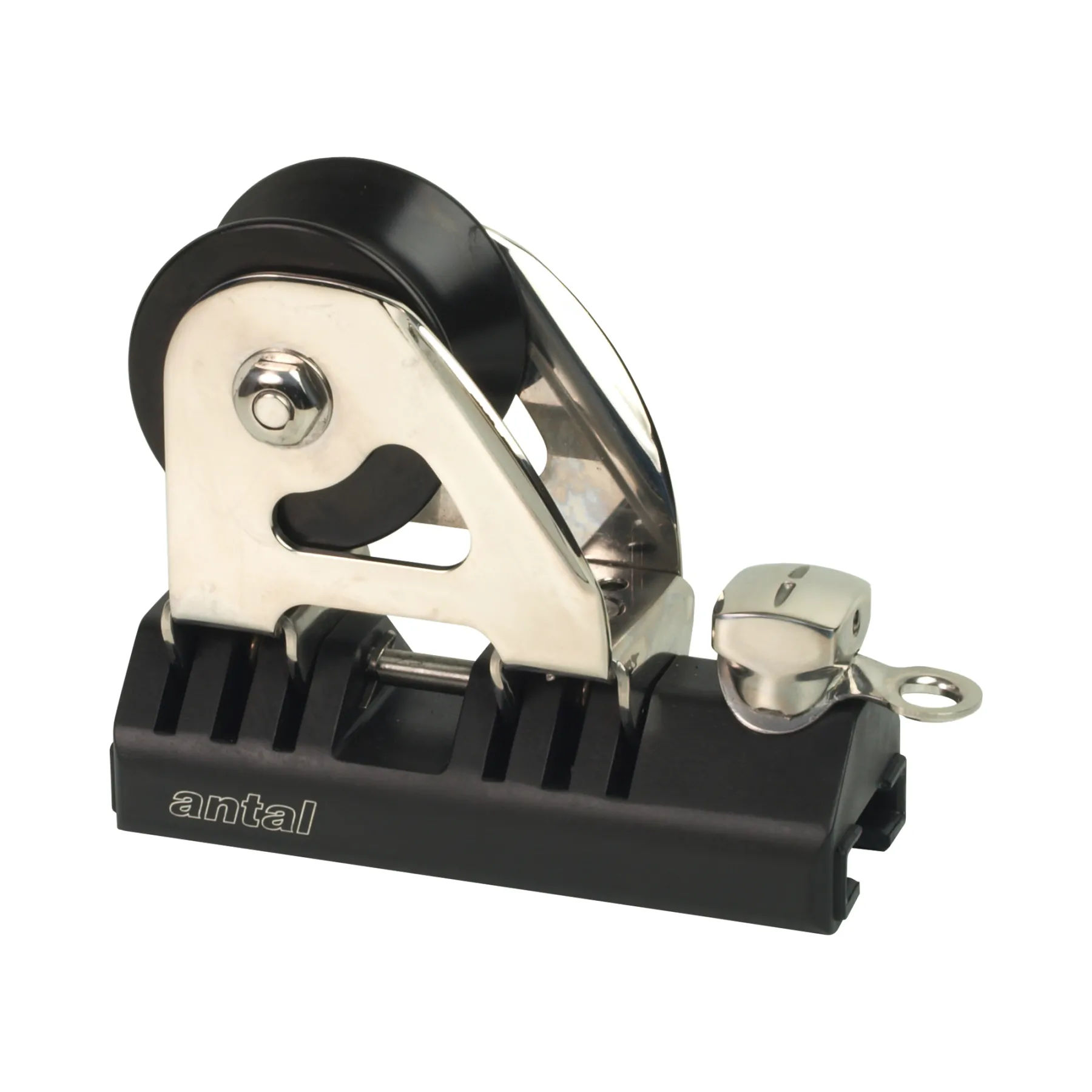

Antal 623.492 - Aluminum/Stainless Steel Genoa Car 40x8, With Sliding Inserts, 160x60x142mm, SWL 3800kg
The largest in this series, this Genoa car incorporates a hard black anodized aluminum slider with low friction Nylon sliding inserts. Its revolving upper structure (±50°) is made from robust AISI 316 stainless steel. The resin sheave, supported by two side ball bearings, ensures smooth rotation. Equipped with a stainless steel pin with lock-up position and a becket for remote control line.

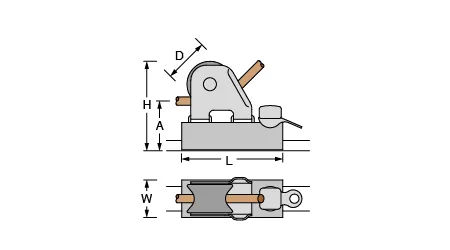

- Length (L): 160 mm
- Width (W): 60 mm
- Overall height from deck: 142 mm
- Track dimensions: 40 x 8 mm
- Ø sheave (D): 75 mm
- Weight: 1.50 kg
- A dimension: 74 mm
- Safe Working Load (SWL): 3800 kg
- Becket: Yes
- Stop pin: Yes
- Article number: 623492
-
