The Antal 622.492 Genoa car offers a medium size and robust performance, featuring black anodized aluminum and smooth Nylon sliding inserts. Its revolving upper structure moves ±50°, and it has a safe working load of 2800 kg.
- Description
- Ask a Question
-

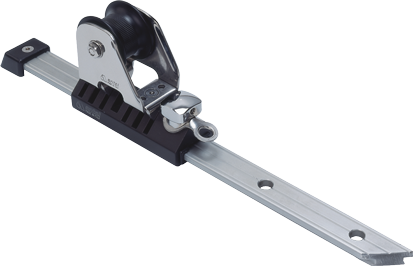

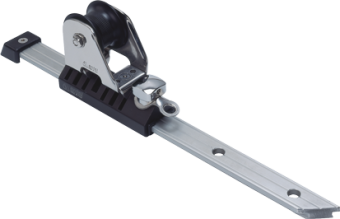

Antal 622.492 - Aluminum/Stainless Steel Genoa Car 32x6, With Sliding Inserts, 133x49x117mm, SWL 2800kg
This medium-sized Genoa car offers a hard black anodized aluminum slider with smooth Nylon sliding inserts for reliable performance. The revolving upper structure moves ±50° and is crafted from AISI 316 stainless steel. It features a resin sheave mounted on two side ball bearings and an AISI 316 stainless steel pin with a lock-up position. Includes a becket for remote control line operation.

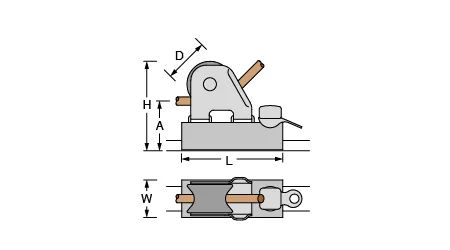

- Length (L): 133 mm
- Width (W): 49 mm
- Overall height from deck: 117 mm
- Track dimensions: 32 x 6 mm
- Ø sheave (D): 60 mm
- Weight: 0.86 kg
- A dimension: 60 mm
- Safe Working Load (SWL): 2800 kg
- Becket: Yes
- Stop pin: Yes
- Article number: 622492
- EAN number: 8719182299349
-
