SKU:
ALP 549132
€ 291,58
1-2 weeks delivery time
-
+
The Antal 549.132 Clutch V-Cam 814 Silver features a triple sheave design suitable for lines between 10 and 12 mm diameter. It provides strong and reliable performance with a maximum working load of 1200 kg.
- Description
- Ask a Question
-

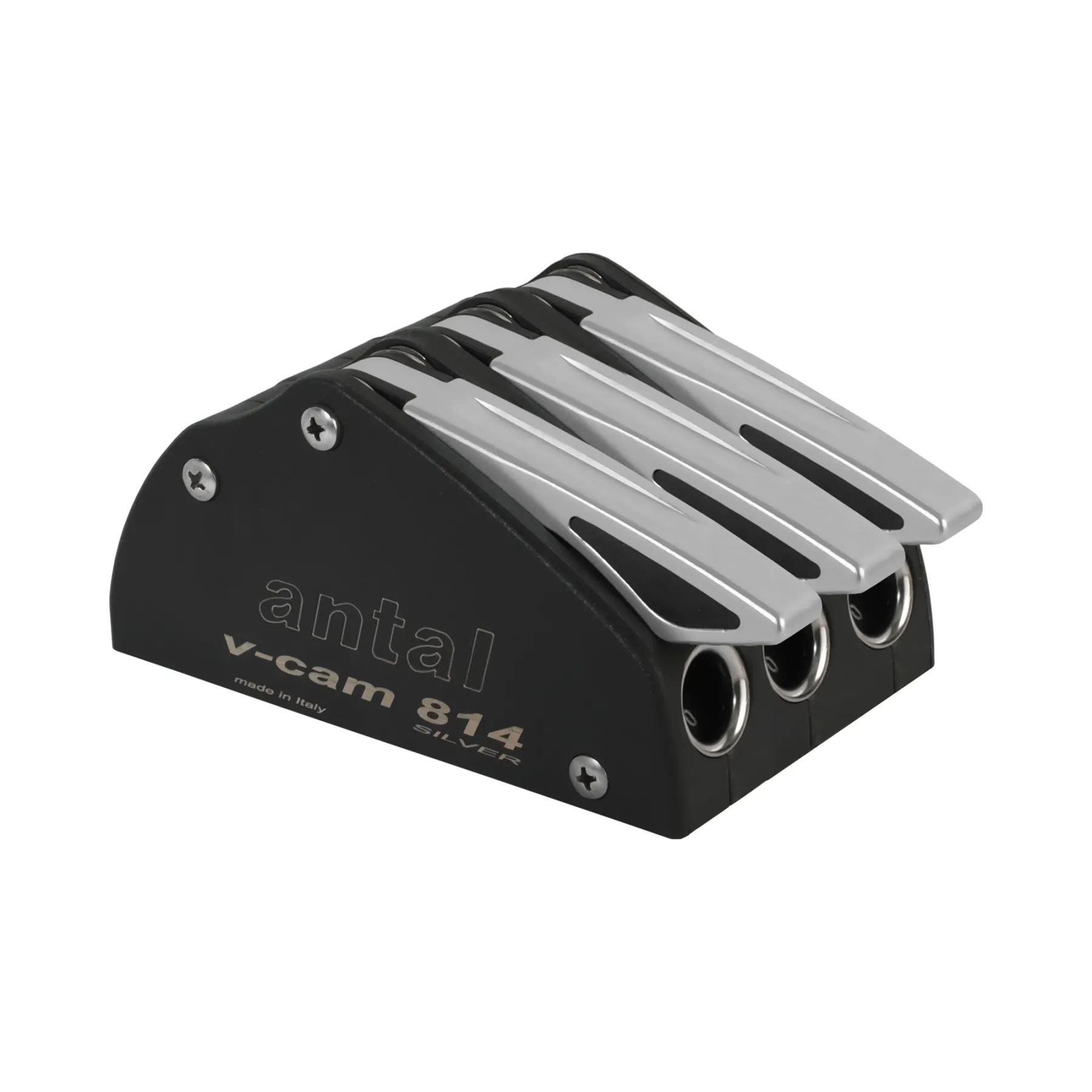

Antal 549.132 - Clutch V-Cam 814 Silver, Triple, Line Ø10-12mm, Width 94mm, Weight 1,6kg
This model features a triple sheave design, making it suitable for larger line sizes, ranging from Ø10mm to Ø12mm. With a maximum working load of 1200 kg, it offers enhanced strength and reliability for demanding applications where durability is crucial.

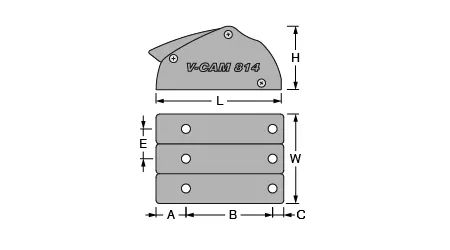

- Length (L): 154,5 mm
- Width (W): 94 mm
- Height (H): 78 mm
- Weight: 1,6 kg
- Ø min line: 12 mm
- Ø max line: 14 mm
- A: 36 mm
- B: 105 mm
- C: 13,5 mm
- E: 29 mm
- Type: Triple
- Fixing screws: 6 x Ø8 mm
- MWL (Maximum Working Load): 1200 kg
- Article Number: 549132
- EAN Number: 8719182108665
-
