SKU:
ALP 507122
€ 255,83
1-2 weeks delivery time
-
+
The Antal 507.122 Clutch V-Grip is a double clutch designed for lines of 10 to 14 mm. Constructed with a corrosion-resistant stainless steel mechanism and a bronze “V” cam, it supports loads of up to 1300 kg for Ø14 mm lines, making it suitable for larger sailing setups.
- Description
- Ask a Question
-
Antal 507.122 - Clutch V-Grip, Double, Line Ø10-12-14mm, Width 67mm, Weight 1.10kg

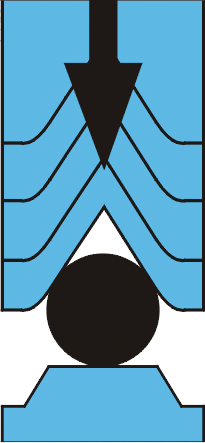

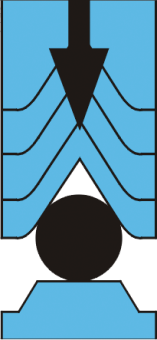

This compact clutch is constructed with a corrosion-resistant Aisi 316 stainless steel mechanism and lever, combined with a bronze “V” shaped cam and a black anodized aluminum frame. It comes in three versions suitable for lines of 8-12, 10-14, and 12-16 mm, available in single, double, and triple models.

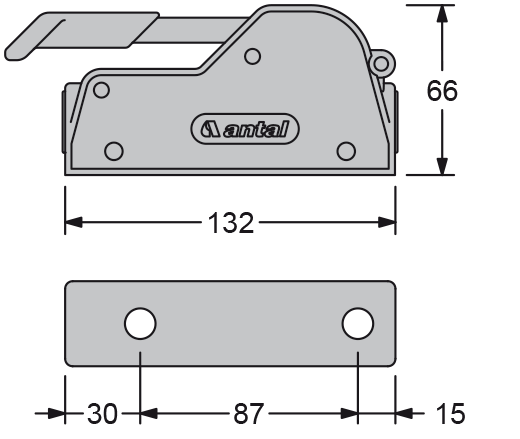

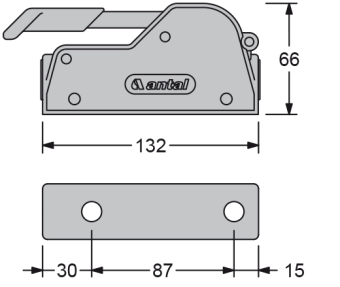

- Its low profile height of only 66 mm makes it an ideal choice when space is limited.
- Designed for lines between 10 and 14 mm diameter.
- Article number: 507122
- EAN number: 8719182084785
- Max. Load: Ø10mm - 700kg / Ø12mm - 1000kg / Ø14mm - 1300kg
- Width: 67mm
- Model: Double
- Weight: 1.1kg
- Line Diameter: Ø10-12-14mm
-
