SKU:
ALP 5400717
€ 147,49
1-2 weeks delivery time
-
+
The vertical up-down block is engineered for vertical applications requiring compact design and smooth ball-bearing operation. It supports lines up to 12 mm in diameter and has a safe working load of 1300 kg. Made from durable aluminum with resin sheaves, it weighs 0.20 kg and comes with two Ø8 mm fixing screws.
- Description
- Ask a Question
-

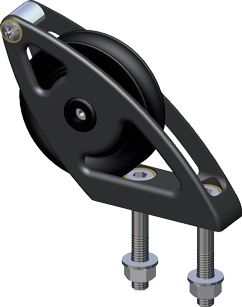

Antal 00717 - Aluminum Block, Ball-Bearing, Vertical Up-Down Block
The vertical up-down block is engineered for vertical applications requiring compact design and smooth ball-bearing operation. It supports lines up to 12 mm in diameter and has a safe working load of 1300 kg, made from durable aluminum with resin sheaves.
- Length: 118 mm
- Width: 25 mm
- Height: 84 mm
- Sheave diameter: 70 mm
- Side bearing: Delrin balls
- Weight: 0.20 kg
- Maximum line diameter: 12 mm
- Dimension A: 14 mm
- Safe working load (SWL): 1300 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 2 x Ø8 mm
- Article number: 5400717
-
