SKU:
ALP 5400716
€ 126,56
1-2 weeks delivery time
-
+
This vertical fix block is compact and designed for mounting in vertical positions. It incorporates Delrin ball side bearings and resin sheaves within an aluminum frame, supporting lines up to 12 mm in diameter. It has a safe working load of 1300 kg and weighs 0.18 kg, with two Ø8 mm fixing screws.
- Description
- Ask a Question
-

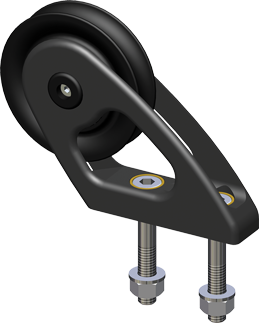

Antal 00716 - Aluminum Block, Ball-Bearing, Vertical Fix Block
This vertical fix block is compact and lightweight, designed for mounting in vertical positions. It incorporates Delrin ball side bearings and resin sheaves within an aluminum frame, suitable for lines up to 12 mm in diameter with a safe working load of 1300 kg.
- Length: 121 mm
- Width: 25 mm
- Height: 89 mm
- Sheave diameter: 70 mm
- Side bearing: Delrin balls
- Weight: 0.18 kg
- Maximum line diameter: 12 mm
- Dimension A: 25 mm
- Safe working load (SWL): 1300 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 2 x Ø8 mm
- Article number: 5400716
-
