SKU:
ALP 5400715
€ 455,22
1-2 weeks delivery time
-
+
This premium block from the OPF-70 series is crafted from durable aluminum with a 70 mm resin sheave, featuring Delrin ball side bearings and composite fibre radial bearings. It is designed for lines up to 12 mm in diameter and a safe working load of 1300 kg. The block weighs 0.75 kg and includes four fixing screws for secure attachment.
- Description
- Ask a Question
-

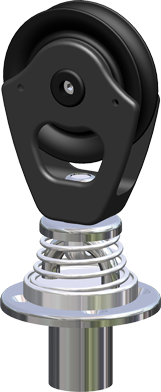

Antal 00715 - Aluminum Block Series OPF-70, Ball-Bearing, Screwed Block
This premium block is crafted from durable aluminum with a 70 mm resin sheave and incorporates Delrin ball side bearings alongside composite fibre radial bearings, ensuring smooth operation under load. Designed to handle lines up to 12 mm in diameter and a safe working load of 1300 kg, it weighs 0.75 kg. The block features four fixing screws of 6 mm diameter and includes a pad eye modification 7308 with a 70 mm base diameter.
- Sheave diameter: 70 mm
- Side bearing: Delrin balls
- Radial bearing: Composite fibre
- Weight: 0.75 kg
- Maximum line diameter: 12 mm
- Safe Working Load (SWL): 1300 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 4 × Ø6 mm
- Pad eye modification: 7308
- Pad eye base diameter: 70 mm
- Article number: 5400715
-
