SKU:
ALP 5400713
€ 222,46
1-2 weeks delivery time
-
+
The OPF-70 U-bolt block features a high safe working load of 5000 kg, making it ideal for heavy-duty tasks. It includes Delrin ball side bearings and composite fibre radial bearings within an aluminum frame and resin sheaves. The block has two Ø8 mm fixing screws for secure attachment.
- Description
- Ask a Question
-

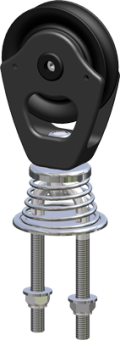

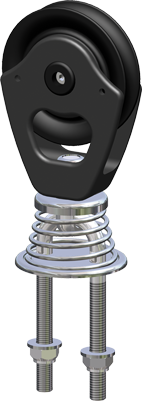

Antal 00713 - Aluminum Block Series OPF-70, Ball-Bearing, U-Bolt Block
The OPF-70 U-bolt block offers a high safe working load of 5000 kg, making it ideal for heavy-duty tasks. It features Delrin ball side bearings and composite fibre radial bearings in a lightweight aluminum body with resin sheaves. The U-bolt fixing screws and base diameter ensure secure attachment.
- Sheave diameter: 70 mm
- Side bearing: Delrin balls
- Radial bearing: Composite fibre
- Weight: 0.32 kg
- Maximum line diameter: 12 mm
- Safe working load (SWL): 5000 kg
- Material: Aluminum
- Sheave material: Resin
- Fixing screws: 2 x Ø8 mm
- U bolt model: 7108
- U bolt base diameter: 54 mm
- Article number: 5400713
-
