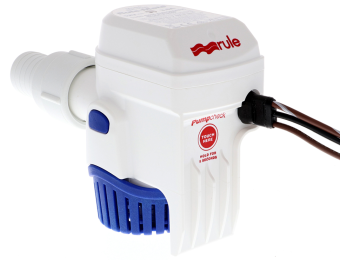

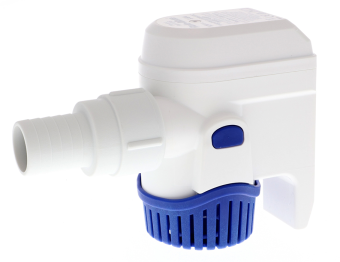

Rule RM1100B-24 - Rule-Mate 1100 Submersible Pump 24V

Rule RM1100B-24 - Rule-Mate 1100 Submersible Pump 24V

The Rule RM1100B-24 Rule-Mate 1100 Submersible Pump is a highly efficient and fully automated 24V bilge pump, specifically designed for smaller vessels. Offering a maximum output of 69 litres per minute (15 gallons per minute) with a maximum discharge head of 2 meters, this pump is ideal for keeping bilges dry and free from water accumulation. The pump features an integral sensor for automatic operation, and its backup mechanism ensures that the pump reverts to a 2.5-minute cycle mode in case of a fouled sensor, preventing dry running. Its tough plastic body ensures durability, while the air vents in the body help prevent air locks during installation. Equipped with a quick-release inlet strainer for easy cleaning, this pump is designed for optimal performance with low amp draw to conserve battery power. Its backflow prevention system reduces the amount of water left in the bilge, making it an efficient choice for water management in marine environments.

Key Features:

• Maximum output of 69 litres/minute (15 gallons/minute) for efficient bilge water removal
• Automatic operation with an integral sensor for hassle-free water removal
• Back up feature that prevents dry running if the sensor is fouled
• Low amp draw ensures optimal battery conservation
• Air vents prevent air locks, ensuring smooth operation in challenging installations
• Quick-release inlet strainer allows for easy cleaning and maintenance
• Backflow prevention reduces water accumulation in the bilge
• Ignition protected for added safety
• Compact size, ideal for smaller vessels with limited space

Specifications:

• Voltage: 24V DC
• Connections: For 25mm (1") or 29mm (1 1/8”) bore hose with straight outlet
• Dimensions: 112mm high, 130mm long, 73mm wide
• Fuse Size: 4 amps
• Output: Up to 69 litres/minute (15 gallons/minute)
• Maximum Discharge Head: 2m
• Backflow Prevention: Yes
• Air Vents: Yes, to prevent air locks
• Inlet Strainer: Quick release for easy cleaning
• Low Amp Draw: Yes, to conserve battery
• Ignition Protected: Yes
• Material: Durable plastic construction
• Motor Life: 2,500 hours
• Mounting: Horizontal or vertical mounting options
• Package Dimensions: L: 18.00 x H: 8.00 x W: 20.00 cm
• Weight: 0.48 kg (approx. 0.68 kg packed)
• Operating Temperature Range: -10°C to +40°C (14°F to 104°F)
• Ingress Protection: IP68 (suitable for continuous submersion)
• Certifications: ISO 9001, CE, RoHS compliant

Compatibility and Application:

The Rule RM1100B-24 Rule-Mate 1100 Submersible Pump is perfect for smaller vessels, providing fully automated bilge water removal. It is especially suitable for boats where space is limited and efficient water management is critical. The pump's backflow prevention and low amp draw make it a great choice for conserving battery power, while its compact size allows for easy installation in tight spaces. Whether for fresh or saltwater applications, this pump ensures smooth operation and long-lasting performance in all conditions. Ideal for marine applications such as bilge water removal, deck wash, or keeping areas dry in recreational boats, small yachts, and other watercrafts.

Benefits:

• Efficient bilge water removal with automatic operation
• Low power consumption helps save on battery life
• Easy installation and maintenance with quick-release strainer
• Durable construction, built to withstand harsh marine environments
• Backflow prevention ensures less water accumulation in the bilge
• Air vents prevent air locks, ensuring optimal performance
• Compact design, ideal for space-constrained installations
• Reliable and safe, with ignition protection
