SKU:
ALP 66102489801
€ 959,78
1-2 weeks delivery time
-
+
The Johnson Pump 10-24898-01 is a 12V brushless heavy-duty pump designed for high-capacity applications, offering up to 115 l/min at 0.1 bar. It features IP67 protection, a 20,000-hour service life, and is ideal for large vehicles and marine systems. The pump has a 38 mm hose connection and includes a universal mounting bracket.
- Description
- Ask a Question
-

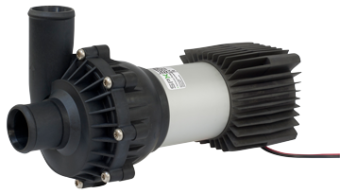

Johnson Pump 10-24898-01 - CM90P7-1 BL - Heavy Duty Circulation Pump, 12V, 55/115 l/min, Connection Ø38 mm, IP67
Designed for high capacity circulation in heating systems of trains, buses, boats, and vehicle coolant cooling, this pump features advanced durability and performance for demanding environments.
- Flow rate: 115 litres per minute at 0.1 bar; 90 litres per minute at 0.25 bar
- Heavy-duty magnetic driven, seal-less (leak-proof) construction
- IP67 rated waterproof and dustproof
- 12V DC brushless motor (nominal voltage 13.6V) designed for continuous operation
- Built-in thermal overload protection
- Brushless motor with permanently lubricated ball bearings, supporting up to 20,000 hours uninterrupted service
- High torque ensures safe starts even under difficult conditions
- Non-self-priming, requires flooded suction
- Can tolerate dry running for up to 30 minutes
- Suitable liquids: fresh water or water/glycol mixture with max 60% glycol
- Liquid temperature range: –40°C to +100°C
- Ambient operational temperature: –40°C to +70°C
- System pressure: 0.2 to 2.5 bar at 100°C
- Includes a separate universal bracket for flat surface mounting
- Connection for Ø38 mm (1-1/2") hose inner diameter
- Electrical specifications: Amperage 10A; fuse size 12A
- Dimensions: Height 15.0 cm / Width 12.1 cm / Length 27.2 cm
- Weight: 3.0 kg (2.8 kg without bracket)
- Article number: 66102489801
- EAN number: 8719182068440
- Power input: Max. 125W
-
