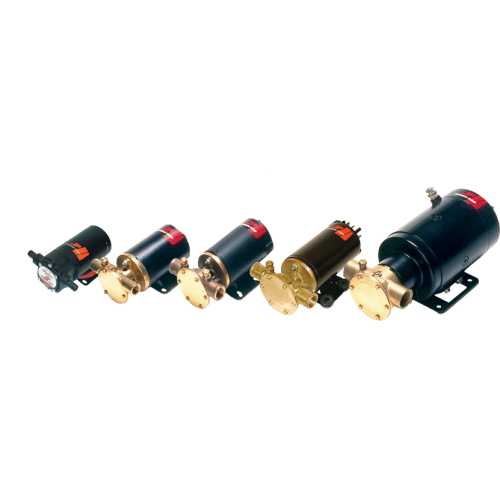

Johnson Pump 10-24727-01 - Self-Priming Impeller Pump F38B-19, 12V, 35 l/min, Connection 1" Hose & 1/2" BSP

SKU: ALP 66102472701

€ 306,79

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 10-24727-01 is a self-priming impeller pump built for demanding applications like bilge pumps and fire pumps. It features a heavy-duty motor, a flow rate of up to 35 l/min, and a bronze body with a brass pump head. This pump offers reliable performance in marine environments, capable of self-priming up to 3 meters under ideal conditions, with oil-resistant nitrile impellers for added durability.

Description
Ask a Question

Johnson Pump 10-24727-01 - Self-Priming Impeller Pump F38B-19, 12V, 35 l/min, Connection 1" Hose & 1/2" BSP

Designed for demanding applications such as bilge pumps, deck wash pumps, fire pumps, circulating pumps, and refuelling pumps for oil and diesel. This self-priming pump offers reliable performance with a heavy-duty motor built for long-term use even under heavy load.
- Motor: Heavy-duty motor with built-in thermal overload for added protection.
- Operation: Continuous operation capable up to a maximum 0.6 bar head pressure.
- Self-priming: Self-priming up to 3 m under perfect conditions; maximum head should not exceed 6 m.
- Flow Rate: Output up to 35 litres/minute at free flow; approx. 31 l/m at 3m head.
- Material: Brass pump head and oil-resistant nitrile impeller.
- Shaft Seal: Lip seal for secure and durable sealing.
- Connections: 1" hose inner diameter directly to inlet/outlet connection or via R1/2" female thread for corresponding fittings (not included).
- Amperage: 15.8A; fuse size 20A.
- Dimensions: Height: 9.0 cm, Width: 12 cm, Length: 17.5 cm.
- Weight: 3 kg.
- Voltage: 12V.
- Model: F38B-19.
- Capacity: 35 l/min.
- Seal: Lip Seal.
- Body: Bronze.
- Article Number: 66102472701.
- EAN Number: 8719182062448.
