SKU:
ALP 66102466402
€ 508,62
1-2 weeks delivery time
-
+
The Johnson Pump 10-24664-10 CM90 circulation pump is similar to the 12V version but optimized for 24V systems. It offers the same 115 liters per minute flow rate, magnetic-driven seal-less design, IP67 waterproof rating, and thermal protection, designed for continuous operation in vehicles and marine environments.
- Description
- Ask a Question
-

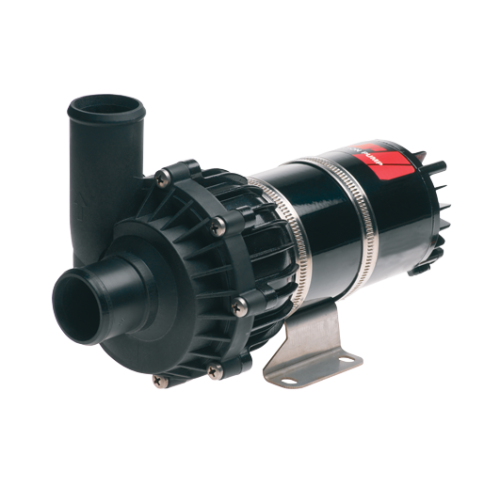

Johnson Pump 10-24664-10 - CM90 Circulation Pump, Plastic Housing, 24V, 115 l/min, Ø38 mm, IP67
This version of the CM90 pump is optimized for 24V systems, ideal for circulating water or antifreeze in vehicle heating and cooling applications, including cars, boats, and recreation vehicles.
- Flow rate: 115 litres/min at 0.1 bar; 85 litres/min at 0.25 bar
- Heavy duty, magnetic-driven, seal-less, leak-proof design
- Waterproof and dustproof IP67 rated 24V DC motor (nominal voltage 27.2V) for continuous operation
- Built-in thermal overload protection
- Brush motor with permanently lubricated ball bearings, rated for up to 10,000 hours continuous use
- High torque for reliable starting under difficult conditions
- Non-self-priming pump requiring flooded suction
- Can operate dry for up to 30 minutes without damage
- Suitable liquids: fresh water or water/glycol mixtures up to 60% glycol
- Liquid temperature range: -40°C to +100°C
- Ambient temperature range: -40°C to +90°C
- System pressure range: -0.2 to +2.5 bar; stationary max. 4.0 bar
- Includes separate universal bracket for mounting on flat surfaces
- Connection designed for Ø38 mm (1-1/2") hose inner diameter
- Electrical specs: 4.6A amperage, fuse size 6A
- Dimensions: Height 15.0 cm, Width 12.0 cm, Length 25.3 cm
- Weight: 3.0 kg
- Article number: 66102466402
- EAN number: 8719182066941
-
