SKU:
ALP 66102466401
€ 508,62
1-2 weeks delivery time
-
+
The Johnson Pump 10-24664-09 CM90 circulation pump has a plastic housing and operates on 12V, delivering up to 115 liters per minute. It is a heavy-duty, magnetic-driven, seal-less pump with an IP67 rating, built-in thermal overload protection, and suitable for circulating fresh water or antifreeze in vehicle heating and cooling systems.
- Description
- Ask a Question
-

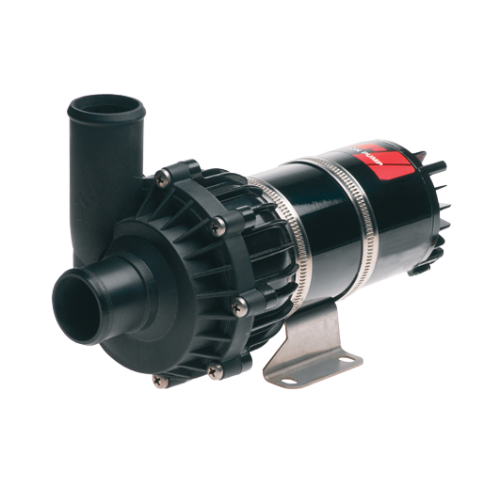

Johnson Pump 10-24664-09 - CM90 Circulation Pump, Plastic Housing, 12V, 115 l/min, Ø38 mm, IP67
This circulation pump is designed for effective water or antifreeze circulation in heating systems for vehicles such as cars, boats, and recreational vehicles. It also efficiently circulates fresh water or coolants to keep vehicle systems cool.
- Flow rate: 115 litres/min at 0.1 bar; 85 litres/min at 0.25 bar
- Heavy duty, magnetic-driven, seal-less design ensuring leak-proof operation
- Waterproof and dustproof IP67 rated 12V DC motor (nominal voltage 13.6V) suitable for continuous use
- Built-in thermal overload protection for safety
- Permanently lubricated ball bearing brush motor rated for up to 10,000 hours of uninterrupted service
- High torque motor allowing safe starts under difficult conditions
- Non-self-priming, requires flooded suction
- Can tolerate dry running for up to 30 minutes
- Compatible liquids: fresh water or water/glycol mixtures up to 60% glycol
- Temperature range for liquid: -40°C to +100°C
- Ambient operational temperature range: -40°C to +90°C
- System pressure range: -0.2 to +2.5 bar; stationary max. 4.0 bar
- Mounting includes separate universal bracket for flat surfaces
- Connection fits Ø38 mm (1-1/2") hose inner diameter
- Electrical specs: 10A amperage, fuse size 12A
- Dimensions: Height 15.0 cm, Width 12.0 cm, Length 25.3 cm
- Weight: 3.0 kg
- Article number: 66102466401
- EAN number: 8719182066941
-
