SKU:
ALP 66102450404
€ 279,14
1-2 weeks delivery time
-
+
The Johnson Pump 10-24504-04 operates at 24V and provides a flow rate of 26 l/min at 0.1 bar. It features a leak-proof, magnetic-driven design, IP67 protection, and a brush motor with a 5000-hour lifespan. It uses a 20 mm hose connection and is suitable for continuous operation in vehicle and marine systems.
- Description
- Ask a Question
-

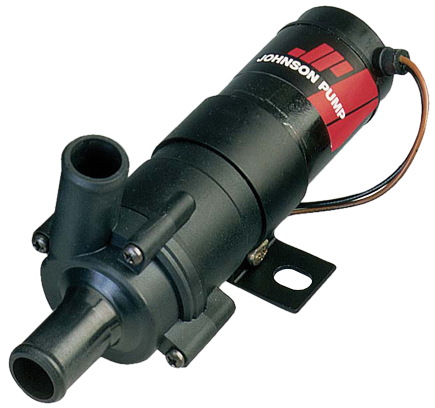

Johnson Pump 10-24504-04 - CM30P7-1 - Heavy Duty Circulation Pump, 24V, 26 l/min, Connection Ø20 mm, IP67
This heavy-duty circulation pump operates at 24V and is engineered for circulating water or antifreeze in heating systems for cars, boats, and recreational vehicles, as well as cooling fresh water and coolants in vehicles.
- Flow rate: 26.0 litres per minute at 0.1 bar; 19.5 litres per minute at 0.2 bar
- Magnetic driven, seal-less (leak-proof) heavy-duty design
- IP67 waterproof and dustproof rating
- 24V DC motor built for continuous operation
- Permanently lubricated ball bearing brush motor offering up to 5000 hours of uninterrupted service
- High torque for reliable starting in tough conditions
- Non-self-priming; requires flooded suction
- Dry running capability up to 30 minutes
- Suitable liquids: fresh water or water/glycol mixture with maximum 60% glycol
- Liquid temperature range: –40°C to +100°C
- Ambient temperature range: –40°C to +70°C
- Maximum system pressure: 2.5 bar
- Includes universal mounting bracket for flat surfaces
- Connection for Ø20 mm (3/4") hose inner diameter
- Electrical specifications: Amperage 1.1A; fuse size 1.6A
- Dimensions: Height 8.5 cm / Width 6.8 cm / Length 17.7 cm
- Weight: 0.60 kg
- Article number: 66102450404
- EAN number: 8719182065449
-
