SKU:
ALP 66102450403
€ 279,14
1-2 weeks delivery time
-
+
The Johnson Pump 10-24504-03 is a 12V heavy-duty circulation pump delivering 26 l/min at 0.1 bar. With a 20 mm hose connection, it features a seal-less magnetic drive, IP67 rating, and a brush motor rated for 5000 hours. It's ideal for vehicle heating and cooling systems and includes a universal mounting bracket.
- Description
- Ask a Question
-

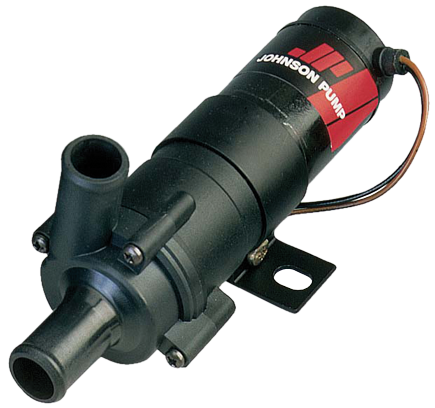

Johnson Pump 10-24504-03 - CM30P7-1 - Heavy Duty Circulation Pump, 12V, 26 l/min, Connection Ø20 mm, IP67
This robust circulation pump is designed for efficient water or antifreeze circulation in heating systems of cars, boats, and recreational vehicles, as well as cooling fresh water and coolants in vehicles.
- Flow rate: 26.0 litres per minute at 0.1 bar; 19.5 litres per minute at 0.2 bar
- Heavy-duty magnetic driven, seal-less (leak-proof) design
- Waterproof and dustproof with IP67 rating
- 12V DC motor suitable for continuous operation
- Permanently lubricated ball bearing brush motor with up to 5000 hours of uninterrupted service
- High torque ensures reliable starts under difficult conditions
- Non-self-priming; requires flooded suction
- Can withstand dry running for up to 30 minutes
- Compatible liquids: fresh water or water/glycol mixture (max 60% glycol)
- Temperature range for liquid: –40°C to +100°C
- Ambient operational temperature range: –40°C to +70°C
- Maximum system pressure: 2.5 bar
- Mounting includes a separate universal bracket for flat surfaces
- Connection for Ø20 mm (3/4") hose inner diameter
- Electrical specs: Amperage 2.2A; fuse size 3.0A
- Dimensions: Height 8.5 cm / Width 6.8 cm / Length 17.7 cm
- Weight: 0.60 kg
- Article number: 66102450403
- EAN number: 8719182065449
-
