SKU:
ALP 66102450204
€ 237,64
1-2 weeks delivery time
-
+
The Johnson Pump 10-24502-04 is a 24V circulation pump that provides a flow rate of 18.5 l/min at 0.1 bar. It has a magnetic-driven, leak-proof design, IP67 protection, and a long-lasting brush motor capable of 5000 hours of service. Suitable for heating and cooling systems, it uses a 20 mm hose connection and comes with a universal bracket.
- Description
- Ask a Question
-

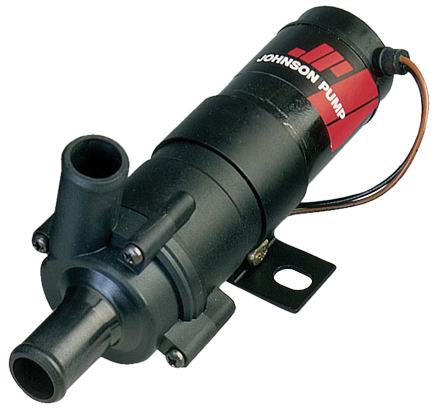

Johnson Pump 10-24502-04 - CM10P7-1 Heavy Duty Circulation Pump, 24V, 18.5 l/min, Connection Ø20 mm, IP67
This 24V circulation pump is ideal for heating and cooling applications in vehicles, offering an 18.5 liters per minute flow at 0.1 bar. It features a magnetic-driven, seal-less, leak-proof design with waterproof and dust-proof IP67 protection. The motor is designed for continuous operation and durability up to 5000 hours.
- Flow rate: 18.5 l/min at 0.1 bar; 14.5 l/min at 0.15 bar
- Heavy duty, magnetic driven, seal-less (leak-proof)
- Waterproof and dust-proof IP67 rated 24V DC motor
- Permanently lubricated ball bearing brush motor, service life up to 5000 hours
- High torque for safe starts in difficult conditions
- Non-self-priming, requires flooded suction
- Can tolerate dry running for up to 30 minutes
- Suitable liquids: fresh water or water/glycol mix with max 60% glycol
- Operating temperature: –40°C to +100°C (liquid), –40°C to +70°C (ambient)
- Max system pressure: 2.5 bar
- Mounting: comes with universal bracket for flat surfaces
- Hose connection: Ø20 mm (3/4") inner diameter
- Amperage: 0.6 A; fuse size: 0.8 A
- Dimensions: Height 85 mm, Width 68 mm, Length 177 mm
- Weight: 0.53 kg
- Article number: 66102450204
- EAN number: 8719182065142
-
