SKU:
ALP 66102450104
€ 237,64
1-2 weeks delivery time
-
+
The Johnson Pump 10-24501-04 is a 24V heavy-duty circulation pump with a flow rate of 15 l/min at 0.1 bar. It features a seal-less, magnetic-driven design, IP67 protection, and a durable brush motor designed for up to 5000 hours of use. It supports water or glycol mixtures and includes a universal mounting bracket.
- Description
- Ask a Question
-

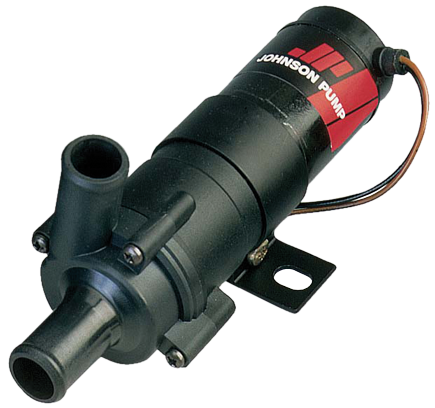

Johnson Pump 10-24501-04 - CM10P7-1 Heavy Duty Circulation Pump, 24V, 15 l/min, Connection Ø16 mm, IP67
Designed for circulating water or antifreeze in vehicle heating and cooling systems, this 24V pump delivers 15 liters per minute flow at 0.1 bar. It has a magnetic-driven, seal-less design ensuring leak-proof operation, and a waterproof, dust-proof IP67 rating for continuous use. The brush motor is lubricated for up to 5000 hours of service.
- Flow rate: 15 l/min at 0.1 bar; 12 l/min at 0.15 bar
- Heavy duty, magnetic driven, seal-less (leak-proof)
- IP67 waterproof and dust-proof 24V DC motor
- Permanently lubricated ball bearing brush motor, up to 5000 hours continuous use
- High torque for reliable starts under tough conditions
- Non-self-priming, requires flooded suction
- Dry running tolerance: up to 30 minutes
- Liquid compatibility: fresh water or water/glycol mixture (max 60% glycol)
- Temperature range: -40°C to +100°C (liquid), -40°C to +70°C (ambient)
- Max system pressure: 2.5 bar
- Mounting: includes universal bracket for flat surfaces
- Hose connection: Ø16 mm (5/8") inner diameter
- Amperage: 0.6 A; recommended fuse: 0.8 A
- Dimensions: Height 85 mm, Width 68 mm, Length 177 mm
- Weight: 0.53 kg
- Article number: 66102450104
- EAN number: 8719182065142
-
