SKU:
ALP 6610242101
€ 602,96
1-2 weeks delivery time
-
+
The Johnson Pump 10-24210-1 model F5B-3000 is a bronze, self-priming impeller pump with a mechanical seal, stainless steel shaft, and a 46 l/min capacity at 2000 rpm. Suitable for marine and industrial use, it features a 3/4’’ BSP internal thread connection and includes the MC97 impeller.
- Description
- Ask a Question
-

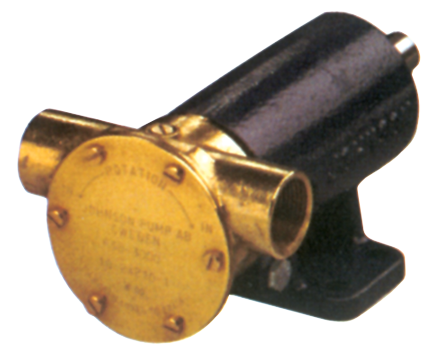

Johnson Pump 10-24210-1 - Impeller Pump F5B-3000, 46l/min, Foot Mounting (with Mechanical Seal & Stainless Steel Cover)
This self-priming, flexible impeller pump made of bronze is engineered for durability and efficient water flow. It features a stainless steel shaft with permanently lubricated double ball bearings and a mechanical seal to minimize wear. The pump housing includes an optional vacuum switch connection for added functionality.
- Drive via single flattened shaft (17mm / 16mm)
- Includes MC97 impeller
- Connections: 3/4" BSP internal threaded ports
- Flow rate: Max. 46 litres/min at 2000 rpm
- Dimensions: Length 195 mm / Width 106 mm / Height 88 mm
- Weight: 2.9 kg
- Typical marine applications: Engine cooling, bilge pump, deck wash, wash-down, emptying holding tanks (use different impeller if necessary)
- Typical industrial applications: Liquid circulation, tank emptying, sump drainage, handling solids in suspension (use different impeller if necessary)
- Commonly used on: Bedford 220, Drinkward Motoren OM 314, Mercedes OM 314, Volvo Penta (VP) TAMD 60B/C
- Alternative to Johnson Pump 10-24210-7 (same pump with different internal thread connection)
- Properties:
- Article number: 6610242101
- EAN number: 8719182063049
- Model: F5B-3000, Base Mount
- Shaft dimension: Ø17mm
- With mechanical seal & stainless steel cover
- Connection: 3/4’’ BSP
- Capacity: 46l/min
- Impeller: Art. 66091027B/B9
-
