SKU:
ALP 6610242091
€ 687,81
1-2 weeks delivery time
-
+
The Johnson Pump 10-24209-1 model F7B-3000 delivers up to 107 l/min and includes a mechanical seal, stainless steel shaft, and 1’’ BSP ports. Ideal for marine and industrial applications, it comes with an MC97 impeller and is compatible with engines like Mercedes OM 352 and DAF DT 615MY.
- Description
- Ask a Question
-

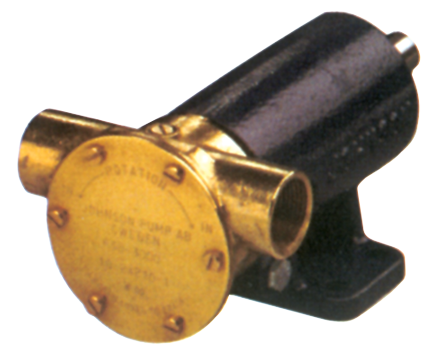

Johnson Pump 10-24209-1 - Impeller Pump F7B-3000, 107l/min, Foot Mounting (with Mechanical Seal & Stainless Steel Cover)
This bronze, self-priming flexible impeller pump offers enhanced flow capacity with a robust stainless steel shaft and double ball bearings. The pump includes a mechanical seal for durability and an optional vacuum switch connection.
- Drive via single flattened shaft (17mm / 16mm)
- Includes MC97 impeller
- Connections: 1" BSP internal threaded ports
- Flow rate: Max. 107 litres/min at 2000 rpm
- Dimensions: Length 213 mm / Width 120 mm / Height 93 mm
- Weight: 3.1 kg
- Typical marine uses: Engine cooling, bilge pumping, deck wash, wash-down, holding tank emptying (use different impeller if necessary)
- Typical industrial uses: Liquid circulation, tank emptying, sump drainage, handling solids in suspension (use different impeller if necessary)
- Commonly found on: Ailsa Craig RAB6, Bedford 330, DAF DT 615MY, DT 575MY, Drinkward OM 352A, OM 352, Mercedes OM 352, OM 355, OM 360, OM401, OM402
- Alternative to Johnson Pump 10-24209-7 (same pump, different internal thread connection)
- Properties:
- Article number: 6610242091
- EAN number: 8719182063049
- Model: F7B-3000, Base Mount
- Shaft dimension: Ø17mm
- With mechanical seal & stainless steel cover
- Connection: 1’’ BSP
- Capacity: 107l/min
- Impeller: Art. 66091028B/B9
-
