SKU:
ALP 6610241902
€ 411,01
1-2 weeks delivery time
-
+
The Johnson Pump 10-24190-2 is a 24V version of the CO90 model, offering the same 100 l/min flow rate and IP67 protection. It features a mechanical seal, is suitable for glycol mixtures, and is built for continuous operation in vehicle heating and cooling systems. It comes with a flat surface mounting bracket.
- Description
- Ask a Question
-

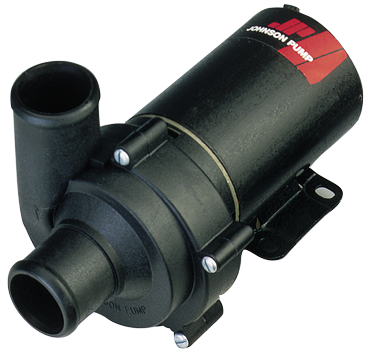

Johnson Pump 10-24190-2 - CO90 - Heavy Duty Circulation Pump, 24V, 100 l/min, Connection Ø38 mm, IP31
This model offers similar features to the 12V version but operates on 24V. It is designed for continuous use in vehicle heating and cooling systems, circulating water or water/glycol mixtures, with robust protection against water and dust ingress.
- Flow Rate: 100 L/min at 0.1 bar; 67 L/min at 0.25 bar
- Shaft Seal: Mechanical seal
- Motor: Permanently lubricated ball-bearing brushed motor, approx. 3,000 hours operating time
- Protection Rating: IP67 (waterproof and dustproof)
- Non-self-priming, requires flooded suction and cannot run dry
- Suitable Liquids: Fresh water or water/glycol mixture (max 60% glycol)
- Temperature Range: Liquid -30°C to +100°C; Ambient -30°C to +70°C
- Max System Pressure: 2.0 bar
- Mounting: Bracket for flat surfaces included
- Connection Size: Ø38 mm (1-1/2" hose inner diameter)
- Electrical: 24V nominal (27.2V), Amperage 4.4A, Fuse size 6A
- Dimensions: Height 110 mm (base plate), total height 116 mm, Width 117 mm, Length 211 mm
- Weight: 1.75 kg
- Article Number: 6610241902
- EAN Number: 8719182062868
-
