SKU:
ALP 6610241901
€ 411,01
1-2 weeks delivery time
-
+
The Johnson Pump 10-24190-1 is a 12V circulation pump with a 100 l/min flow rate at 0.1 bar. It features a mechanical shaft seal and IP67 protection, and is suitable for use with water or glycol mixtures in heating and cooling systems. The unit is non-self-priming and includes a mounting bracket.
- Description
- Ask a Question
-

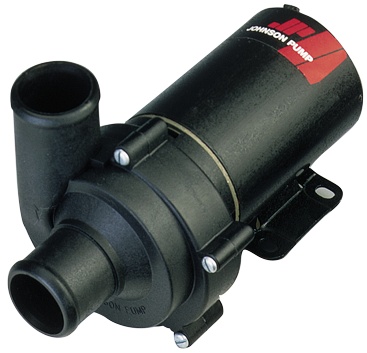

Johnson Pump 10-24190-1 - CO90 - Heavy Duty Circulation Pump, 12V, 100 l/min, Connection Ø38 mm, IP31
This heavy-duty circulation pump is designed for heating system water/antifreeze circulation in vehicles like cars, boats, and recreational vehicles, as well as for cooling fresh water and coolants. It features a mechanical shaft seal and a water- and dust-resistant 12V DC motor suitable for continuous use.
- Flow Rate: 100 L/min at 0.1 bar; 67 L/min at 0.25 bar
- Shaft Seal: Mechanical seal
- Motor: Permanently lubricated ball-bearing brushed motor, approx. 3,000 hours operating time
- Protection Rating: IP67 (waterproof and dustproof)
- Non-self-priming, requires flooded suction and cannot run dry
- Suitable Liquids: Fresh water or water/glycol mixture (max 60% glycol)
- Temperature Range: Liquid -30°C to +100°C; Ambient -30°C to +70°C
- Max System Pressure: 2.0 bar
- Mounting: Bracket for flat surfaces included
- Connection Size: Ø38 mm (1-1/2" hose inner diameter)
- Electrical: 12V nominal (13.6V), Amperage 7.4A, Fuse size 10A
- Dimensions: Height 110 mm (base plate), total height 116 mm, Width 117 mm, Length 211 mm
- Weight: 1.75 kg
- Article Number: 6610241901
- EAN Number: 8719182062868
-
