Zipwake Serie 800E Straight Kit Box Trim System

Zipwake Series 800E Straight Kit Box Trim System 2012012

The Zipwake Dynamic Trim Control System Series 800E is designed for vessels up to 30.5 meters (100 ft) with speeds up to 110 km/h. This complete Series 800E Kit Box includes all necessary components and software for installing a Dynamic Trim Control System, featuring a pair of fast-acting straight interceptors measuring 800 mm.

• Calculate the correct length of interceptors using the Zipwake Measurement Calculation available in the attachments.
• Up to 6 interceptors can be connected; additional interceptors are available separately to achieve the required length.
• The Zipwake system reduces rolling, minimizes trim angle, and saves fuel, resulting in fewer waves—a benefit appreciated by boat owners.
• Equipped with integrated GPS, gyroscope, and 3D accelerometer for optimal performance.
• Can connect to an NMEA 2000 backbone for enhanced functionality.
• Fully automatic operation.
• Available in various sizes and configurations.
• Compatible with up to 6 interceptors.
• Suitable for nearly any sport boat or semi-commercial vessel.
• Provides excellent stability: anti-pitch and anti-roll capabilities.
• Complete with all mounting materials.
• Software updates available via the Zipwake website.
• Additional GPS antenna available.

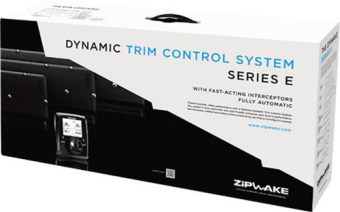

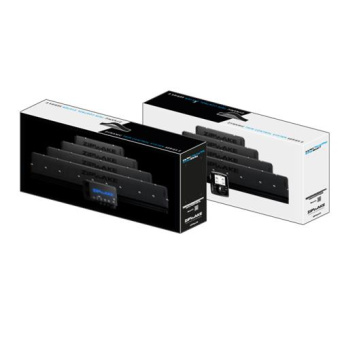

A Zipwake kit box contains all the components needed to install the system with one pair of fast-acting interceptors. There are four different Kit Boxes available with straight interceptors. Each kit box includes the control panel, distribution unit, interceptors, and an extension cable. Every basic installation can be expanded with up to two additional pairs of Series S interceptors, allowing for a total of six interceptors without the need for extra connectors or power supply.
