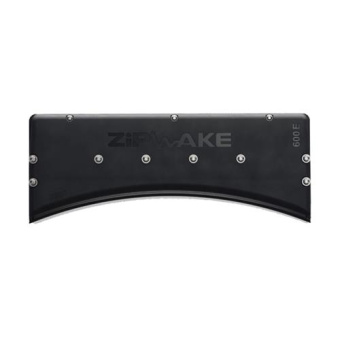

Zipwake Interceptor 600E Tunnel R800 Cable 3Mtr

SKU: EX 2012023

€ 3.754,08

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Zipwake IT600-E R800 Tunnel Interceptor, designed to enhance vessel performance, features a length of 600 mm and a radius of 800 mm, allowing for effective lift generation above propeller tunnels. With a maximum speed of 110 km/h (60 knots) and a temperature range of -40° to +90°C, this interceptor is suitable for new installations or retrofitting in existing systems. It is IP68 rated, made of plastic, and comes with a 3-meter cable, certified by CE and FCC. The product dimensions are 600 mm in width, 80 mm in depth, and 233 mm in height, with an input voltage of 12 or 24 VDC.

Description
Ask a Question

Zipwake Interceptor 600E Tunnel R800 Cable 3Mtr 2012023

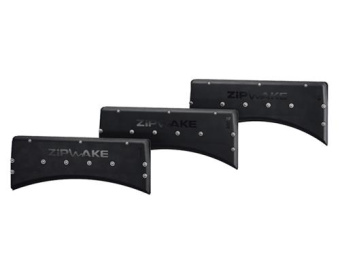

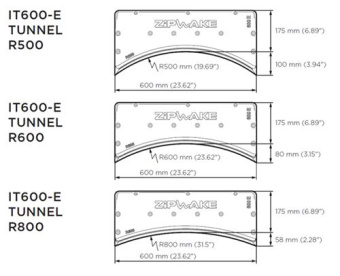

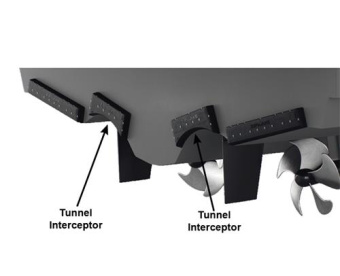

The Zipwake IT600-E R800 Tunnel Interceptor is expertly designed to enhance vessel performance with its unique structural features. With a length of 600 mm and a radius of 800 mm, this tunnel interceptor provides an ideal lift solution for hulls equipped with propeller tunnels. Unlike traditional straight interceptors, the constant arc curvature of the tunnel interceptor allows for mounting above the propeller tunnel, making use of previously unused sections of the beam for lift generation. With three tunnel models featuring varying radii—R500, R600, and R800—most large ship propeller tunnels can be effectively covered, ensuring minimal deviation between the curvature of the hull and the interceptor. This interceptor can be utilized in both new installations and retrofitted into existing systems.
- Product Number: 2012023
- Company Temperature Range (°C): -40° / +90°C
- Protection Class (IP): IP68
- EAN Code: 8720193027746
- Brand: Zipwake
- Cable Length (m): 3
- Certification: CE, FCC
- Color: Black
- Material: Plastic
- Maximum Speed: 110 km/h (60 knots)
- Product Width (mm): 600
- Product Depth (mm): 80
- Product Height (mm): 233
- Series: E
- Input Voltage Type (VAC / VDC): VDC
- Voltage (V): 24 and 12
