SKU:
EX 2012022
€ 3.754,08
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Zipwake IT600-E R600 Tunnel Interceptor is designed to enhance boat performance by providing optimal lift, measuring 600 mm in length with a radius of 600 mm, making it suitable for hulls with propeller tunnels. Its unique curved design allows for installation above the propeller tunnel, utilizing otherwise unused hull sections for lift generation. With three models available (R500, R600, and R800) to fit various vessel propeller tunnels, this product can be used for new installations or retrofitted to existing systems. Key specifications include an operating temperature range of -40° to +90°C, an IP68 protection class, and a product code of 2012022.
- Description
- Ask a Question
-

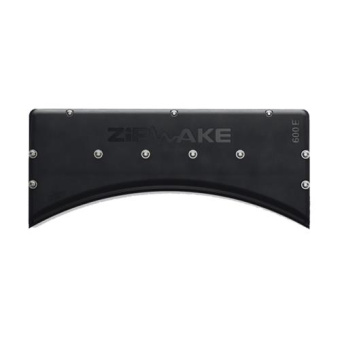

Zipwake Interceptor 600E Tunnel R600 Cable 3Mtr

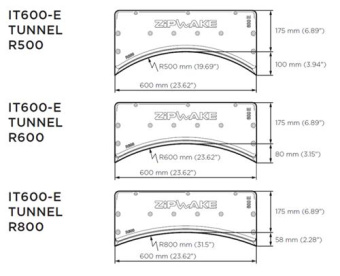

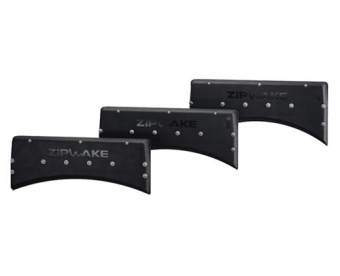

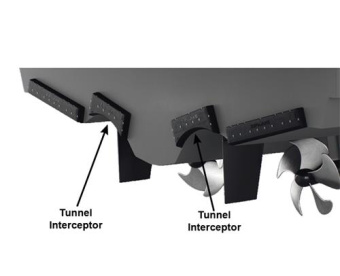

The Zipwake IT600-E R600 Tunnel Interceptor is specifically designed to enhance boat performance by providing optimal lift. Measuring 600 mm in length and featuring a radius of 600 mm, this tunnel interceptor is ideal for hulls with propeller tunnels. Unlike flat interceptors, the consistent curvature of the tunnel interceptor allows for installation above the propeller tunnel, using otherwise unused sections of the hull for lift generation. There are three tunnel models available with different radii (R500, R600, and R800) to accommodate most large vessel propeller tunnels with minimal deviation from the hull curvature. This product can be incorporated into new installations or retrofitted to existing systems.
- Product Code: 2012022
- Unit of Sale: 1 Piece
- Operating Temperature (°C): -40° / +90°C
- Protection Class (IP): IP68
- EAN Code: 8720193027739
- Brand: Zipwake
- Cable Length (m): 3
- Certification: CE, FCC
- Color: Black
- Material: Plastic
- Max Speed: 110 km/h (60 knots)
- Product Width (mm): 600
- Product Depth (mm): 80
- Product Height (mm): 255
- Series: E
- Voltage Type (VAC / VDC): VDC
- Voltage (V): 12
- Voltage (V): 24
-
