SKU:
EX 2012021
€ 3.754,08
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Zipwake IT600-E R500 tunnel interceptor is a 600 mm long device designed to improve the performance of vessels with propeller tunnels. With a 500 mm radius, it generates lift by utilizing areas above the propeller tunnel, making it suitable for various hull designs. Available for new installations or retrofitting, it features an operating temperature range of -40° to +90°C, is certified to IP68 protection class, and supports speeds up to 110 km/h (60 knots). The interceptor is compatible with most large ship propeller tunnels and is made of plastic with a black color, powered by 12/24 VDC.
- Description
- Ask a Question
-

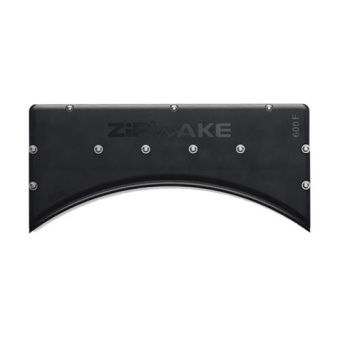

Zipwake Interceptor 600E Tunnel R500 Cable 3Mtr

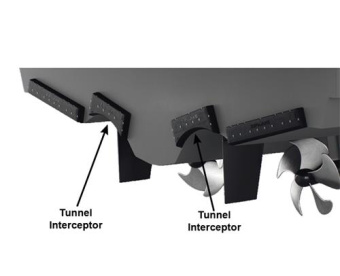

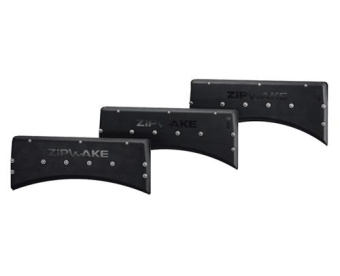

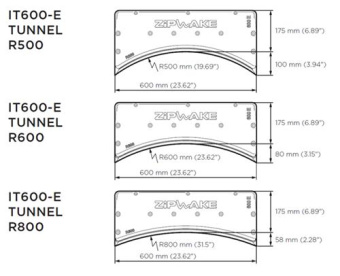

The Zipwake IT600-E R500 tunnel interceptor is designed to enhance the performance of vessels with propeller tunnels. Measuring 600 mm in length and featuring a radius of 500 mm, this interceptor provides ideal lift solutions specifically tailored for such hull designs. Unlike straight interceptors, the continuous arc curvature of the tunnel interceptor allows for installation above the propeller tunnel, effectively utilizing otherwise wasted areas of the hull to generate lift. With three different tunnel models available—R500, R600, and R800—it ensures compatibility with most large ship propeller tunnels while maintaining minimal discrepancies between hull curvature and interceptor alignment. Tunnel interceptors can be integrated into new installations or retrofitted into existing systems.
- Product Code: 2012021
- Sales Unit: 1 piece
- Operating Temperature (°C): -40° / +90°C
- Protection Class (IP): IP68
- EAN Code: 8720193027722
- Brand: Zipwake
- Cable Length (m): 3
- Certification: CE, FCC
- Color: Black
- Material: Plastic
- Maximum Speed: 110 km/h (60 knots)
- Product Width (mm): 600
- Product Depth (mm): 80
- Product Height (mm): 275
- Series: E
- Type Voltage (VAC / VDC): VDC
- Voltage (V): 12 / 24
-
Ask a Question
