ZF 3209308036 - Oil Filter Marine Transmission Short

ZF 3209308036 - Oil Filter Marine Transmission Short

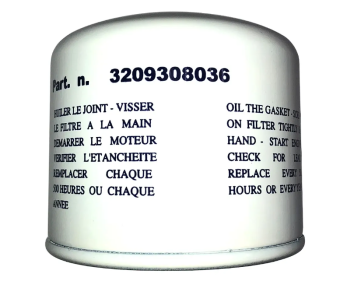

The ZF 3209308036 Oil Filter is a high-quality, spin-on type oil filter designed for use with ZF 300 series and IRM 300 series marine transmission models. This original equipment ZF item ensures optimal filtration and efficient operation, keeping your marine transmission systems running smoothly. With an inorganic microfiber filtration media rated at 25 µm, it offers excellent dirt and debris removal to maintain the health of your transmission system. The filter features a burst pressure of 21 bar and a collapse pressure of 10 bar, making it highly durable and resistant to high-pressure conditions. The ¾ inch UNF female bottom thread ensures secure installation, while its compact dimensions of 3-3/8 inches in length and 3-5/8 inches in diameter make it easy to handle and replace. The filter is designed to withstand working pressures up to 12 bar, ensuring reliable performance in demanding marine environments. Manufactured in Italy, this oil filter is a direct replacement for ZF 3310200006, ensuring compatibility with a wide range of ZF and IRM transmission systems.

Key Features:

• Compatible with ZF 300 series and IRM 300 series transmission models
• Original equipment ZF item for reliable performance
• Inorganic microfiber filtration media with a 25 µm rating for excellent filtration
• Burst pressure of 21 bar and collapse pressure of 10 bar for durability in high-pressure conditions
• ¾ inch UNF female bottom thread for secure installation
• Filtration rating of 25 µm to ensure efficient dirt and debris removal
• Working pressure of 12 bar for dependable operation in demanding marine conditions
• Compact size of 3-3/8 inches in length and 3-5/8 inches in diameter for easy handling
• Replaces ZF 3310200006 for easy replacement in compatible transmission systems
• Manufactured in Italy for high-quality standards

Specifications:

• Part Number: ZF 3209308036
• Type: Spin-on Oil Filter
• Compatibility: ZF 300 series and IRM 300 series transmission models
• Filtration Media: Inorganic Microfibers
• Filtration Rating: 25 µm
• Burst Pressure: 21 bar
• Element Collapse Pressure: 10 bar
• Working Pressure: 12 bar
• Total Height: 95 mm (3.74 inches)
• Outer Diameter: 95.5 mm (3.76 inches)

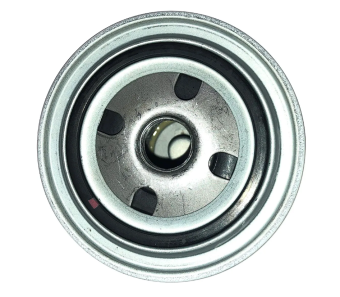

• Thread Size: ¾ inch UNF Female Bottom, 16 TPI
• Dimensions: 3-3/8 inches long by 3-5/8 inches diameter
• Shipping Weight: 2 lbs (0.91 kg)
• Shipping Dimensions: 4" x 4" x 4" (10.16 cm x 10.16 cm x 10.16 cm)
• Item Weight: 1 lb (0.45 kg)
• Color: White
• Made In: Italy
• Manufacturer: ZF
• Thread Pitch: 1.5 mm
• Thread Type: UNF (Unified National Fine)
• Element Collapse Pressure (COL-P): 10 bar
• Media Type: Inorganic Microfibers
• Filtration Media (FILT-MED): Inorganic Microfibers
• Thread Type (TH-type): UNF
• Position (Pos): Bottom
• Threads per Inch (TPI): 16
• Orientation: Female

Compatibility and Application:

The ZF 3209308036 Oil Filter is designed for use with ZF 300 series and IRM 300 series marine transmission models, ensuring optimal filtration and system efficiency. It is ideal for both new installations and as a replacement part for existing marine transmission systems, ensuring smooth operation and long-term reliability. Its high-pressure resistance and excellent filtration properties make it suitable for demanding marine environments, including commercial vessels and recreational boats.

Benefits:

• Excellent filtration with a 25 µm rating to maintain transmission health
• Durable construction capable of withstanding high-pressure conditions
• Easy to install with a ¾ inch UNF female bottom thread
• Compact size for simple handling and replacement
• Replaces ZF 3310200006 for easy replacement in compatible systems
• Reliable performance in both freshwater and saltwater environments
• Maintains transmission efficiency by preventing contamination and debris buildup
• Manufactured in Italy for superior quality and precision
