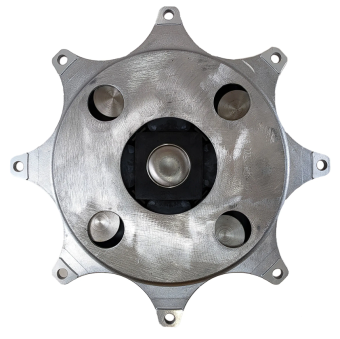

ZF 3207116001 - Damper Coupling CF-DS-40-7-2-011 - 11.5'

ZF 3207116001 - Damper Coupling CF-DS-40-7-2-011 - 11.5'

The ZF 3207116001 Damper Coupling CF-DS-40-7-2-011 is engineered to provide superior vibration isolation and reduce shock loads, ensuring the reliability and longevity of the marine transmission system. It is designed for a torque range of 0.25 to 15 kNm, making it suitable for a variety of marine applications. The coupling is constructed from advanced CENTALAN and HD elastic materials, both of which offer exceptional performance under varying temperature conditions. CENTALAN operates between -45°C and +100°C, while HD extends this range up to +130°C. The 11.5-inch damper coupling plays a crucial role in maintaining smooth power transmission, reducing mechanical wear, and providing resistance to extreme environmental conditions. With shipping dimensions of 16 × 16 × 4 inches and a weight of 20 lbs, this product offers a combination of excellent damping capacity and practical integration into marine systems.

Key Features:

• Reduces vibration and shock loads to protect marine transmission systems from damage
• Torque range from 0.25 to 15 kNm, adaptable for multiple marine applications
• Constructed using CENTALAN and HD materials for superior vibration damping and durability
• Operating temperature range for CENTALAN: -45°C to +100°C, HD: -45°C to +130°C
• 11.5-inch length for optimal fitment and performance
• Shipping weight: 20 lbs (9.07 kg); Shipping dimensions: 16 × 16 × 4 inches (406 × 406 × 102 mm)
• Durable, corrosion-resistant construction ensures long-term performance in harsh marine environments
• Optimized design to prevent mechanical failure and excessive vibration transmission
• Ideal for high-stress applications, offering resilience against shock loading
• Effective protection against premature wear and transmission failure
• Helps ensure efficient power transfer by reducing strain on transmission components

Specifications:

• Part Number: ZF 3207116001
• Type: Damper Coupling CF-DS-40-7-2-011
• Length: 11.5 inches (292 mm) – Optimal for standard installations in marine transmission systems
• Torque Range: 0.25 to 15 kNm – Suitable for various engine and transmission configurations
• Elastic Material: CENTALAN and HD – Both materials are highly effective for vibration damping and resilient under extreme conditions
• CENTALAN Temperature Range: -45°C to +100°C – Effective in standard marine operational environments
• HD Temperature Range: -45°C to +130°C – Suitable for high-performance and industrial-grade applications
• Shipping Weight: 20 lbs (9.07 kg)
• Shipping Dimensions: 16 × 16 × 4 inches (406 × 406 × 102 mm) – Compact, space-saving design for easy shipping and storage
• Durability: Corrosion-resistant and engineered to withstand extreme mechanical stresses and environmental factors typical in marine systems
• Operating Conditions: Effectively operates in high-vibration, high-torque marine environments, ideal for boats, yachts, and industrial marine applications
• Shock Load Protection: The damper coupling minimizes the impact of shock loads, ensuring smoother operations and preventing excessive wear
• Mounting Type: Compatible with standard marine coupling installations – typically used in marine propulsion systems to connect engine and transmission components
• Vibration Isolation: Significantly reduces harmful vibrations that could otherwise contribute to the premature failure of transmission and engine components
• Material Composition: CENTALAN (rubber-based) and HD (high-density rubber) – both materials provide excellent vibration damping and temperature resistance
• Installation: Designed for easy integration with existing marine transmission systems, helping reduce downtime and installation costs
• Load Capacity: Rated to handle significant torque loads, ensuring that high-powered marine engines can operate without risk of failure
• Resilience: Withstands long-term exposure to saltwater and marine pollutants, making it ideal for use in commercial and recreational vessels

Compatibility and Application:

The ZF 3207116001 Damper Coupling is designed for use in marine transmission systems that require a reliable and efficient method to isolate vibrations and shock loads. It is particularly suitable for high-performance marine engines, yachts, and industrial marine applications that operate under high-stress conditions. The torque range of 0.25 to 15 kNm makes it highly versatile, capable of fitting a wide array of marine engine configurations. This damper coupling is an essential component for enhancing drivetrain performance, reducing wear, and ensuring the smooth operation of transmissions in a variety of marine environments.

Benefits:

• Reduces vibration and shock load transmission, protecting sensitive components from damage
• Improves the longevity of marine transmission systems by minimizing mechanical wear
• Resilient against extreme temperatures and mechanical stresses, ensuring reliable performance
• Versatile torque range makes it ideal for various marine engine configurations
• Enhances the overall efficiency of power transfer, contributing to fuel savings and engine performance
• Manufactured with high-quality materials for optimal vibration damping and corrosion resistance
• Perfect for use in both commercial and recreational vessels operating in harsh marine conditions
• Prevents excessive strain on the transmission system, extending its operational lifespan
• Reduces mechanical noise and enhances passenger comfort by isolating vibrations
• Compatible with standard marine installation setups, offering easy integration into existing systems
