SKU:
TN 00135108
€ 42,10
1-2 weeks delivery time
-
+
Uflex 64420K delivers a 30 kg push force with a 550 mm length and 234 mm stroke, relying on nitrogen gas and oil for smooth extension and damping, and recommended mounting at a 30° angle for best performance.
- Description
- Ask a Question
-

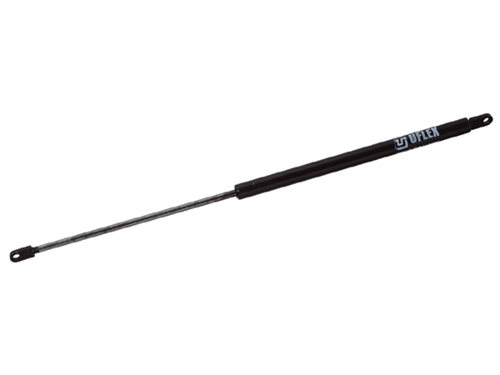

Uflex 64420K - Black Gas Spring, L=550 mm / S=234 mm / 30 kg
Designed to open and keep doors and hatches open, this gas spring uses compressed nitrogen gas pressure inside its tube to extend the piston rod. The gas flows through a self-cleaning valve within the piston rod, which is lubricated and damped by a small amount of oil inside the tube.
- Order number: 00135108
- Supplier code: 64420K
- Barcode: 64420K
- Push force: 30 kg

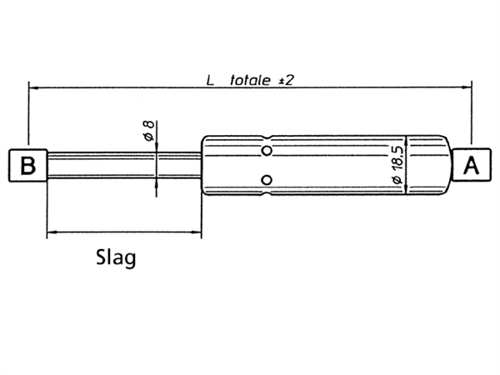

- Total length: 550 mm (measured center-to-center of end fittings in fully opened position)
- Stroke: 234 mm

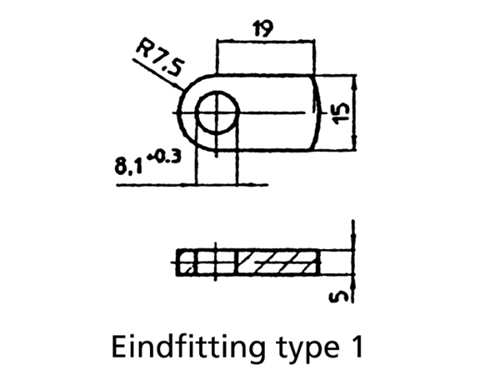

- End fitting A: 1
- Final fitting B: 1
- Rod diameter: 8 mm except for part numbers 00135220, 00135221, and 00135222, which use 10 mm rods
- Mounting: Mount the gas spring at a 30° angle to the vertical plane with the piston rod directed toward the pivot point for optimal damping. When large opening angles are involved, orient the piston rod toward the pivot point to be opened to enhance damping after the horizontal plane.

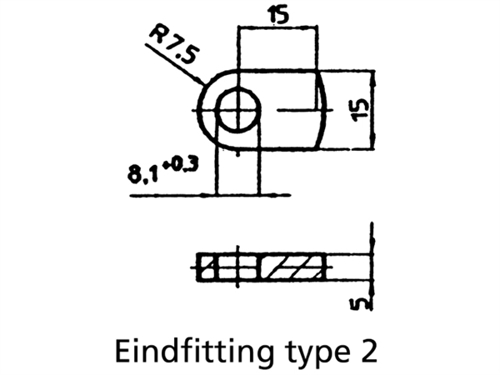

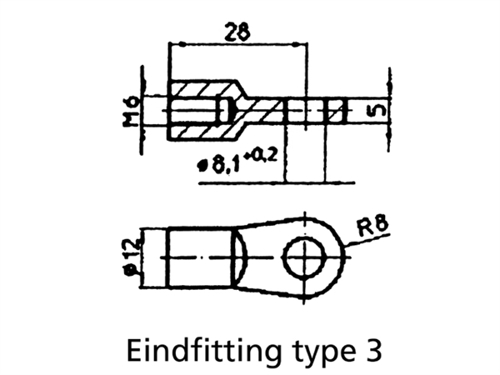

- Final fitting sequence: 1, 2, 3 (refer to images)
-
