SKU:
ALP TM485A240
€ 4.014,60
1-2 weeks delivery time
-
+
The Technodrive Hydraulic Marine Gearbox TM485A, offering a 2.40:1 forward and reverse ratio, is ideal for those requiring more torque. It is built for both recreational and commercial use, providing a max torque of 43 kgm for pleasure and 28 kgm for commercial applications. The gearbox has a dry weight of 36 kg and uses 2.6 liters of oil while operating at 24 bar pressure.
- Description
- Ask a Question
-

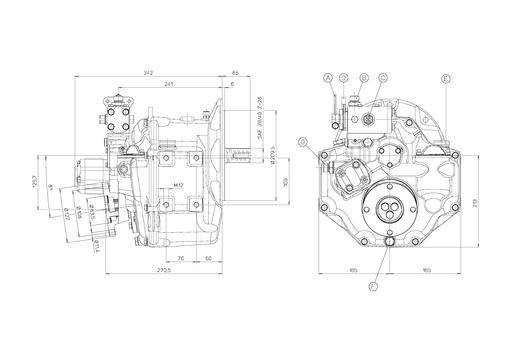

Technodrive Hydraulic Marine Gearbox TM485A, R=2.40:1
For vessels requiring a higher forward and reverse ratio, this 2.40:1 gearbox provides increased torque and efficiency. It’s suitable for both pleasure and commercial use, offering reliable performance at an operating pressure of 24 bar.
- Article number: TM485A240
- EAN number: 8719182621225
- Forward Ratio: R=2.40:1
- Reverse Ratio: R=2.40:1
- Max. input power: 4500 rpm
- Dry weight: 36kg
- Oil quantity: 2.6l
- Down angle output shaft: 8°
- Lubricating pressure: 0.5-1.5 bar
- Operating pressure: 24 bar
- Max. torque, pleasure: 43 kgm
- Max. torque, commercial: 28 kgm
-
