SKU:
ALP TM345154
€ 2.965,64
1-2 weeks delivery time
-
+
The Technodrive Hydraulic Marine Gearbox TM345 with a reduction ratio of R=1.54:1 is built for high performance in demanding marine environments. It offers a maximum torque of 25 kgm for pleasure use, a dry weight of 25 kg, and an oil quantity of 1.5 liters. The gearbox operates with lubricating pressure between 0.5-1.5 bar and an operating pressure of 24 bar.
- Description
- Ask a Question
-

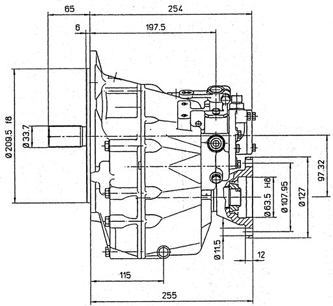

Technodrive Hydraulic Marine Gearbox TM345, R=1,54:1
The Technodrive Hydraulic Marine Gearbox TM345 with a reduction ratio of R=1,54:1 is designed to deliver high performance, especially in demanding marine environments.
- Article number: TM345154
- EAN number: 8719182620082
- Inboard Forward Ratio: R=1.54:1
- Inboard Reverse Ratio: R=1.54:1
- Max. Input Power: 4500 rpm
- Dry Weight: 25kg
- Oil Quantity: 1.5 liters
- Lubricating Pressure: 0.5-1.5 bar
- Operating Pressure: 24 bar
- Max. Torque, Pleasure: 25 kgm
-
