SKU:
ALP TM265A230
€ 6.695,78
1-2 weeks delivery time
-
+
The Technodrive Hydraulic Marine Gearbox TM265A with a reduction ratio of R=2.30:1 provides efficient performance for various marine vessels. With a dry weight of 165 kg, it has a maximum torque of 89 kgm for pleasure use and 79 kgm for commercial use. It operates with a lubricating pressure of 0.5-1.5 bar and an operating pressure of 24 bar.
- Description
- Ask a Question
-

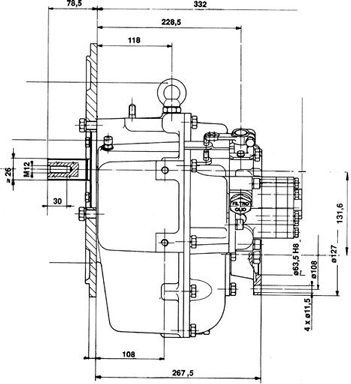

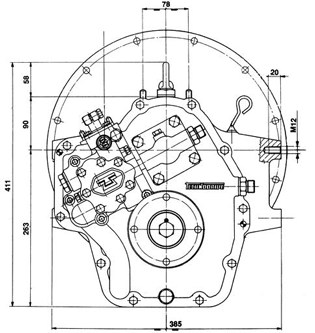

Technodrive Hydraulic Marine Gearbox TM265A, R=2,30:1
The Technodrive Hydraulic Marine Gearbox TM265A with a reduction ratio of R=2,30:1 provides efficient performance, making it suitable for various marine vessels.
- Article number: TM265A230
- EAN number: 8719182619604
- Inboard Forward Ratio: R=2.30:1
- Inboard Reverse Ratio: R=2.30:1
- Max. Input Power: 3000 rpm
- Dry Weight: 165kg
- Oil Quantity: 5.5 liters
- Down Angle Output Shaft: 7°
- Lubricating Pressure: 0.5-1.5 bar
- Operating Pressure: 24 bar
- Max. Torque, Pleasure: 89 kgm
- Max. Torque, Commercial: 79 kgm
-
