SKU:
ALP 9022350
€ 25.246,55
1-2 weeks delivery time
-
+
The Solé Marine Engine SK-60 with Technodrive TM345 gearbox (R=2.47:1) provides 60 hp / 44.5 kW and operates at 2700 rpm. It features a 4-cylinder turbo diesel engine with indirect mechanical injection and a hydraulic gearbox offering a 2.47:1 reduction ratio. With a weight of 243 kg, it is designed for efficient power delivery in marine applications.
- Description
- Ask a Question
-
Solé Marine Engine SK-60 With Technodrive Gearbox TM345, R=2.47:1
This version of the Solé Marine Engine SK-60, paired with the Technodrive TM345 gearbox, offers a different reduction ratio suited for specific marine propulsion needs.
- Article Number: 9022350
- Engine Type: Turbo Diesel, 4-stroke
- No. of Cylinders: 4 in line
- Bore x Stroke: 87x102mm
- Total Displacement: 2.434cc
- Compression Ratio: 22.5:1

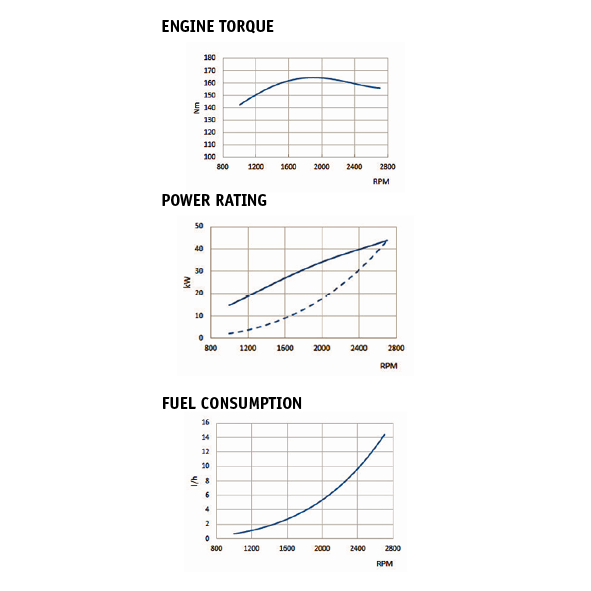

- Max Output: ISO3046/1 60hp / 44.5kW
- Max Speed: 2,700 rpm
- Max Torque: 165Nm at 1,850 rpm
- Combustion System: Indirect mechanical injection
- Cooling System: Fresh water with heat exchanger
- Electrical System: 12V starter motor, 2.2kW, Alternator 120A
- Weight: 243kg (Including TM345)
- Max Installation Angle: 17° (+3° discontinuous)
- Exhaust: Ø60mm
- Sea-water Intake: Ø32mm
- Fuel Intake: Ø8mm
- Fuel Return: Ø6mm
- Gearbox and Reduction: Hydraulic gearbox Technodrive TM345, R=2.47:1
-
