SKU:
ALP 9022191
€ 30.864,49
1-2 weeks delivery time
-
+
This version of the Solé SM 103 engine is coupled with a Technodrive TM93 hydraulic gearbox offering a 2.40:1 reduction ratio. It maintains the same 76hp (56kW) output at 2,300 rpm and shares the same key features like indirect mechanical injection and fresh-water cooling, providing a reliable solution for various inboard marine propulsion setups.
- Description
- Ask a Question
-
Solé Marine Diesel Engine SM 103 76 Hp With Technodrive Gear Box TM93, R=2.40:1
This configuration of the Solé SM 103 pairs the same reliable 6-cylinder diesel engine with a Technodrive TM93 hydraulic gearbox, optimized for a 2.40:1 reduction ratio to suit various inboard marine propulsion setups.
- Article number: 9022191
- EAN number: 8719182087472
- Engine type: Diesel, 4-stroke
- Number of cylinders: 6 in line
- Bore x stroke: 94x120mm
- Total displacement: 4.996cc
- Compression ratio: 22:1
- Maximum output (DIN6270B): 76hp / 56kW
- Maximum speed: 2,300 rpm

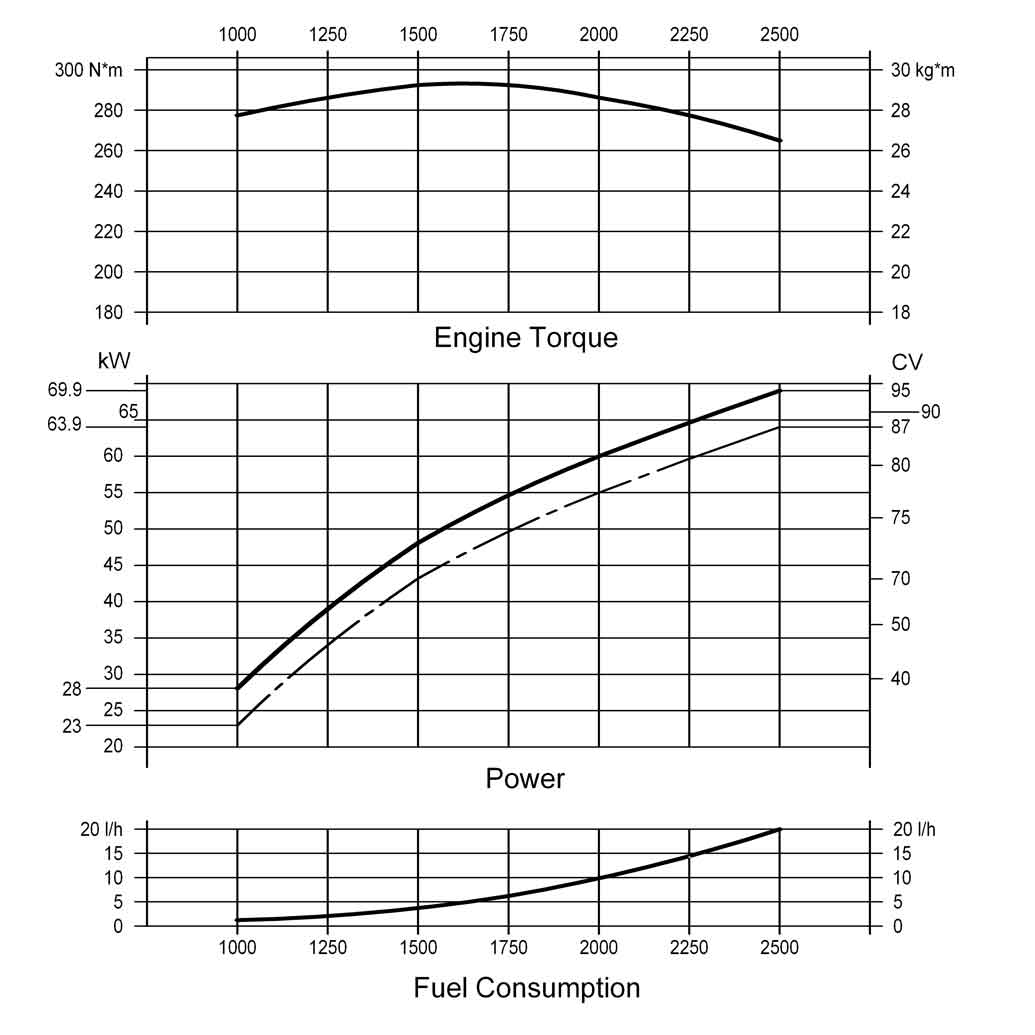

- Maximum torque: 293Nm at 1,625 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water using heat exchanger
- Electrical system: 12V starter motor (3kW), Alternator 95A
- Weight: 460kg
- Maximum installation angle: 12° (+3° discontinuous)
- Exhaust diameter: Ø75mm
- Sea-water intake: Ø30mm
- Fuel intake: Ø8mm
- Fuel return: Ø8mm
- Gearbox: Technodrive TM93 (hydraulic)
- Reduction ratio: 2.40:1
-
