SKU:
ALP 9022254
€ 41.049,38
1-2 weeks delivery time
-
+
The marine diesel engine SDZ 165 Turbo & Intercooler with a Technodrive TM880A gearbox and a 2.60:1 reduction ratio is a robust 4-cylinder inline turbocharged engine designed for efficient and reliable inboard use.
- Description
- Ask a Question
-
Solé Marine Diesel Engine SDZ 165 Turbo & Intercooler, With Technodrive Gear Box TM880A, R=2.60:1
This marine diesel engine is a 4-stroke turbocharged and intercooled power unit designed for reliable inboard use. Featuring a 4-cylinder inline configuration, it delivers efficient performance and robust mechanical design.
- Article number: 9022254
- EAN number: 8719182090359
- Type: Turbo Diesel Intercooler, 4-stroke
- Cylinders: 4 in line
- Bore x stroke: 108 x 130 mm
- Total displacement: 4,764 cc
- Compression ratio: 17.6:1

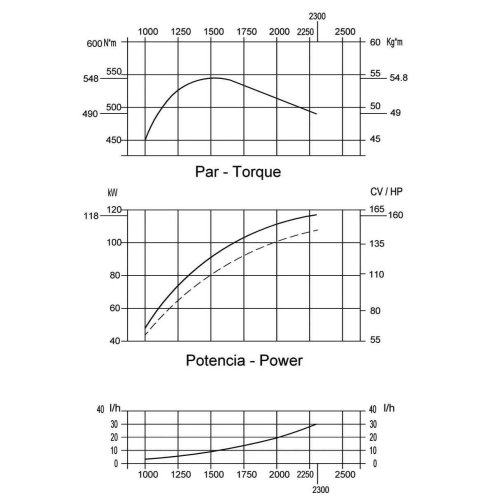

- Max output (DIN6270B): 160 hp / 118 kW
- Max speed: 2,300 rpm
- Max torque: 548 Nm at 1,500 rpm
- Combustion system: Direct mechanical injection
- Cooling system: Fresh water cooling with heat exchanger, cooled exhaust manifold and turbo
- Electrical system: 2 poles, 24V starter motor 4 kW, alternator 55A
- Weight: 646 kg (including TM170 gearbox)
- Maximum installation angle: 7° (+3° discontinuous)
- Exhaust diameter: Ø90 mm
- Sea-water intake diameter: Ø42 mm
- Fuel intake diameter: Ø12 mm
- Fuel return diameter: Ø12 mm
- Gearbox and reduction: Hydraulic Technodrive TM170A, ratio 2.60:1
-
