SKU:
ALP 9022250
€ 40.662,99
1-2 weeks delivery time
-
+
The Solé Marine Diesel Engine SDZ 165 Turbo & Intercooler delivers 160 HP and features a hydraulic Technodrive TM170 gearbox with a 2.04:1 reduction ratio, designed for powerful and efficient marine propulsion.
- Description
- Ask a Question
-
Solé Marine Diesel Engine SDZ 165 Turbo & Intercooler With Technodrive Gear Box TM170, R=2.04:1
This powerful turbo diesel engine with intercooler delivers 160 HP and comes equipped with a hydraulic Technodrive TM170 gearbox featuring a 2.04:1 reduction ratio, designed for efficient marine propulsion.
- Article number: 9022250
- EAN number: 8719182090359
- Engine type: Turbo Diesel Intercooler, 4-stroke
- Cylinders: 4 in line
- Bore x stroke: 108x130mm
- Total displacement: 4.764cc
- Compression ratio: 17.6:1
- Maximum output: DIN6270B 160hp / 118kW
- Maximum speed: 2,300 rpm

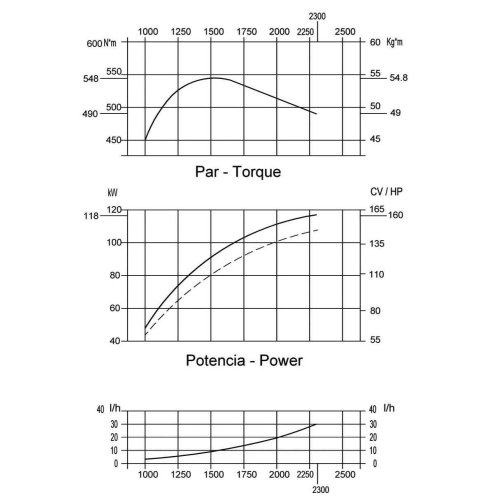

- Maximum torque: 548Nm at 1,500 rpm
- Combustion system: Direct mechanical injection
- Cooling system: Fresh water cooling with heat exchanger, cooled exhaust manifold and turbo
- Electrical system: 2 poles, 24V starter motor 4kW, alternator 55A
- Weight: 646kg (including TM170 gearbox)
- Maximum installation angle: 7° (+3° discontinuous)
- Exhaust diameter: Ø90mm
- Sea-water intake diameter: Ø42mm
- Fuel intake diameter: Ø12mm
- Fuel return diameter: Ø12mm
- Gearbox and reduction: Hydraulic Technodrive TM170 gearbox with R=2.04:1
-
