SKU:
ALP 9022045
€ 16.009,10
1-2 weeks delivery time
-
+
The Solé Mini 44 equipped with a Technodrive TMC260 gearbox has a 4-cylinder diesel engine and a 2.88:1 reduction ratio for efficient marine power delivery, producing 42 hp, approved for Lake Constance, and weighing 190 kg.
- Description
- Ask a Question
-
Solé Marine Diesel Engine Mini 44 With Technodrive Gear Box TMC260, R=2.88:1
The Solé Mini 44 equipped with a Technodrive TMC260 gearbox features a 4-cylinder diesel engine and a reduction ratio of 2.88:1, designed for efficient power delivery in marine settings. This model carries Lake Constance approval.
- Article number: 9022045
- EAN number: 8719182078531
- Engine type: Diesel, 4-stroke
- No. of cylinders: 4 in line
- Bore x stroke: 78x92mm
- Total displacement: 1,758cc
- Compression ratio: 22:1

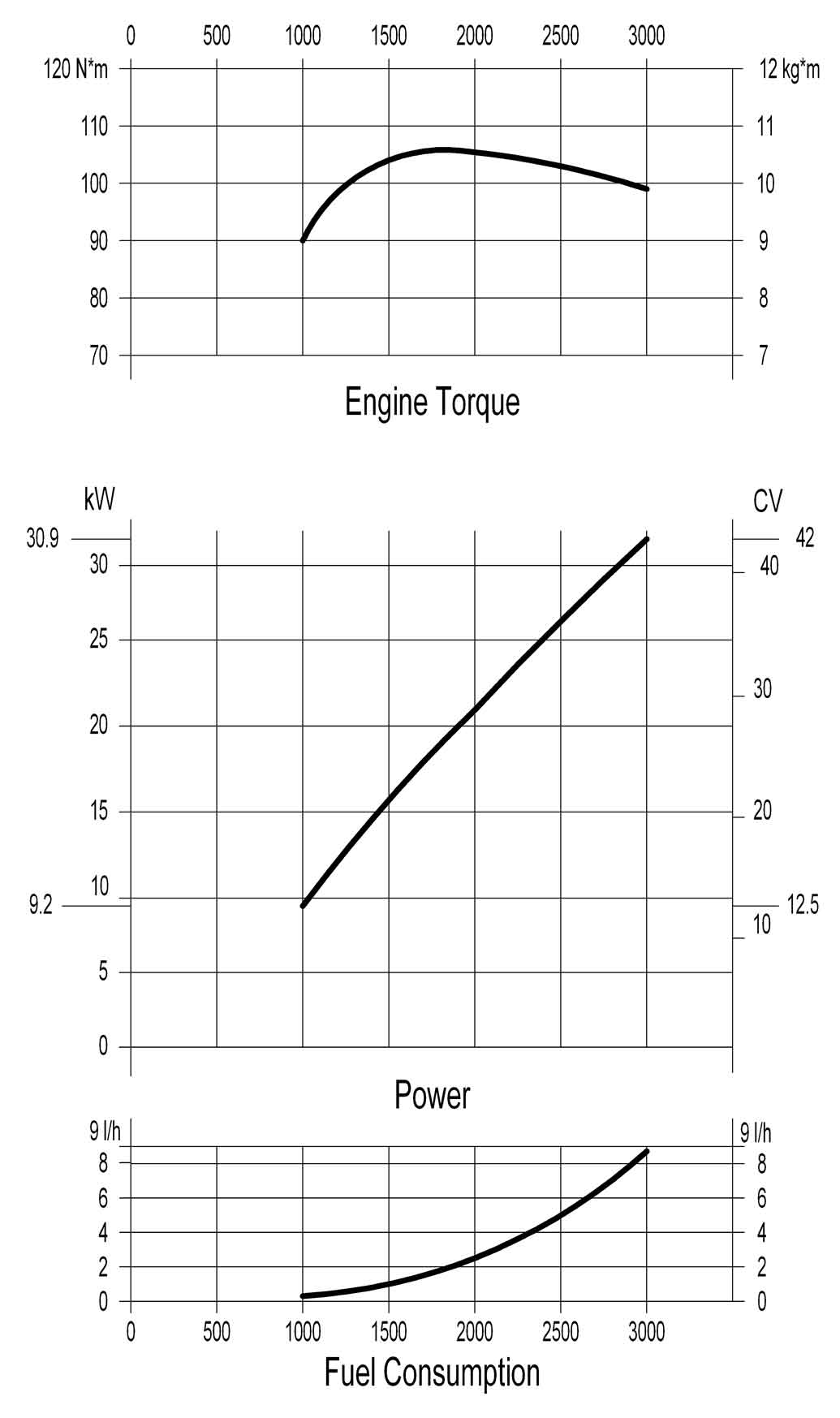

- Max. output (DIN6270B): 42hp / 30.9kW
- Max. speed: 3,000 rpm
- Max. torque: 106Nm at 1,800 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water with heat exchanger
- Electrical system: 12V starter motor (2kW), Alternator 95A
- Weight: 190kg
- Max. installation angle: 12° (+3° discontinuous)
- Exhaust: Ø50mm
- Sea-water intake: Ø20mm
- Fuel intake: Ø6mm
- Fuel return: Ø5mm
- Gearbox and reduction: Technodrive TMC260, R=2.88:1
- Lake Constance Approval: Yes
-
