SKU:
ALP 9022143
€ 17.037,79
1-2 weeks delivery time
-
+
The Solé Mini 44 offers increased power with its 4-cylinder diesel engine and a hydraulic Technodrive TM345 gearbox at a 2.00:1 reduction ratio, producing 42 hp, designed for tough marine environments, and approved for Lake Constance, weighing 190 kg.
- Description
- Ask a Question
-
Solé Marine Diesel Engine Mini 44 With Technodrive Gear Box TM345, R=2.00:1
The Solé Mini 44 offers increased power with its 4-cylinder diesel engine and the hydraulic Technodrive TM345 gearbox, featuring a reduction ratio of 2.00:1. This model is designed for demanding marine environments and is certified for Lake Constance navigation.
- Article number: 9022143
- EAN number: 8719182078531
- Engine type: Diesel, 4-stroke
- No. of cylinders: 4 in line
- Bore x stroke: 78x92mm
- Total displacement: 1,758cc
- Compression ratio: 22:1

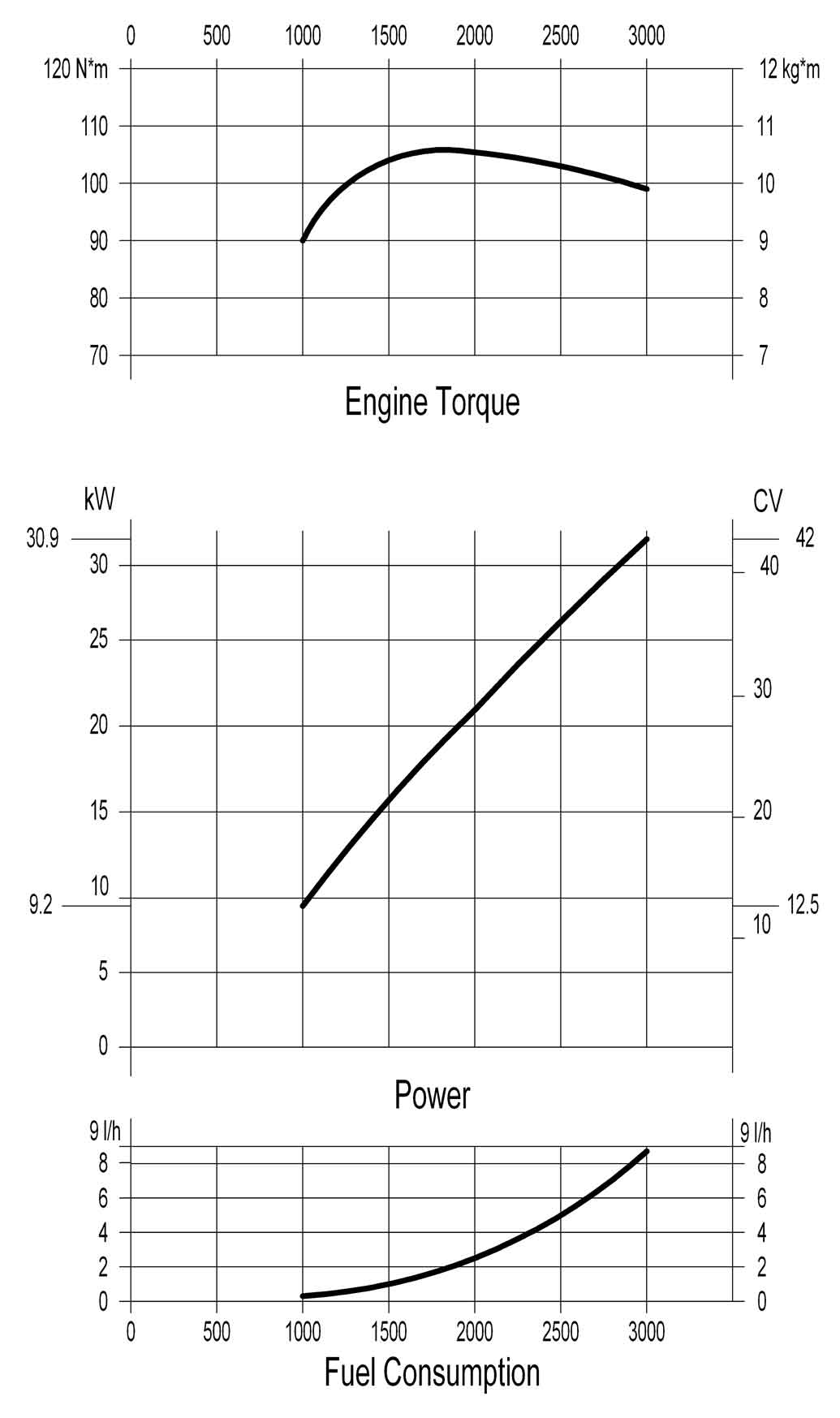

- Max. output (DIN6270B): 42hp / 30.9kW
- Max. speed: 3,000 rpm
- Max. torque: 106Nm at 1,800 rpm
- Combustion system: Indirect mechanical injection
- Cooling system: Fresh water with heat exchanger
- Electrical system: 12V starter motor (2kW), Alternator 95A
- Weight: 190kg
- Max. installation angle: 12° (+3° discontinuous)
- Exhaust: Ø50mm
- Sea-water intake: Ø20mm
- Fuel intake: Ø6mm
- Fuel return: Ø5mm
- Gearbox and reduction: Hydraulic Technodrive TM345, R=2.00:1
- Lake Constance Approval: Yes
-
